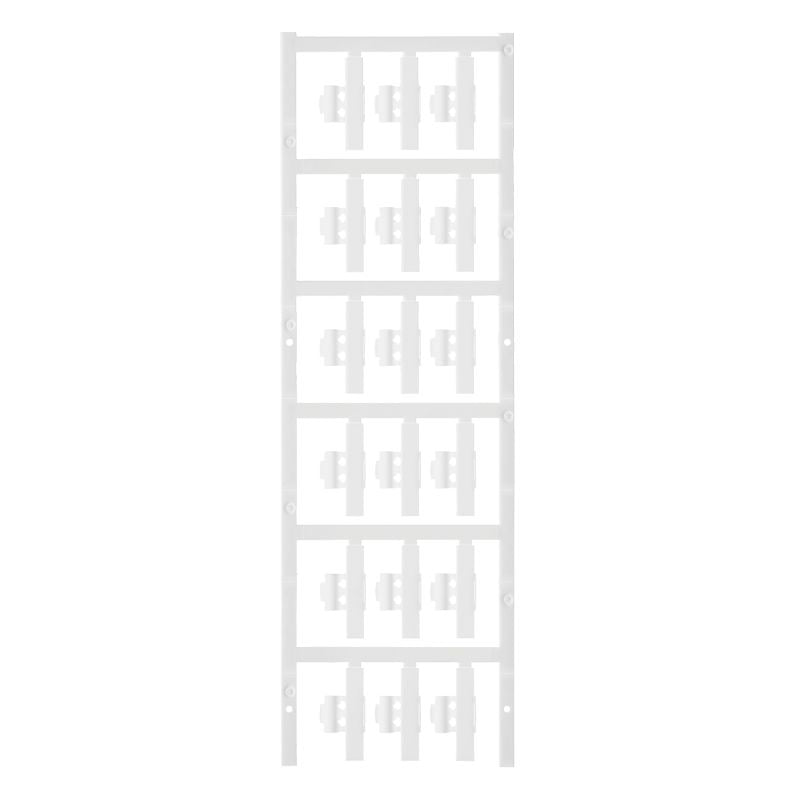

1813240000 - SlimFix 30mm Cable Markers for 1.5-2.5mm Conductors, White (Pack of 150)

SKU: SKU: 1813240000 Download PDF

Select a Variant:

1813240000 - SlimFix 30mm Cable Markers for 1.5-2.5mm Conductors, White (Pack of 150)

SET THE QTY:

Now $27.97 Web pricing policy

~~BEFORE $0.00~~ Now $27.97 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the SlimFix Clip, your go-to solution for labeling conductors and cables measuring between 15 to 25 mm in cross-section With a compact height of 30 mm and a width of 58 mm, these markers are packaged in a convenient multi-card format, offering a total of 150 pieces per order Crafted from durable polyamide 66, this product also meets RoHS compliance standards, ensuring safety and environmental responsibility in your marking tasks.

Features and Benefits:

•Operating temperature range from -40 to 100 °C.

•Compliant with RoHS without exemption.

•UL 94 flammability rating of V-2.

•Compatible with PRINTJET CONNECT printer.

•Product carbon footprint of 0.004 kg CO2 eq..

•Neutral printing type.

•Recommended for machinery applications.

Specifications:

Depth	7 mm
Height	30 mm
Width	5.8 mm
Conductor O.D.	1.5 - 2.5 mm
Conductor cross-section, min.	0.5 mm²
Conductor cross-section, max.	1 mm²
Cross-section for connected wire	0.5 - 1 mm²
Material	Polyamide 66
Halogen	No
Size of labelling field	30 x 4.1 mm
GTIN (EAN)	4032248296989
Qty.	150 items
Classifications	{'ETIM 6.0': 'EC001530', 'ECLASS 9.0': '27-40-04-01'}
