2009930000 - SlimFix X Cable Markers, 7-40mm, 24x13.62mm, RoHS Compliant (Pack of 120)

2009930000 - SlimFix X Cable Markers, 7-40mm, 24x13.62mm, RoHS Compliant (Pack of 120)

SKU: SKU: 2009930000 Download PDF

Variant:
  • 2009930000 - SlimFix X Cable Markers, 7-40mm, 24x13.62mm, RoHS Compliant (Pack of 120)
Regular price Now $59.57
Regular price BEFORE   $0.00 Sale price Now $59.57
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

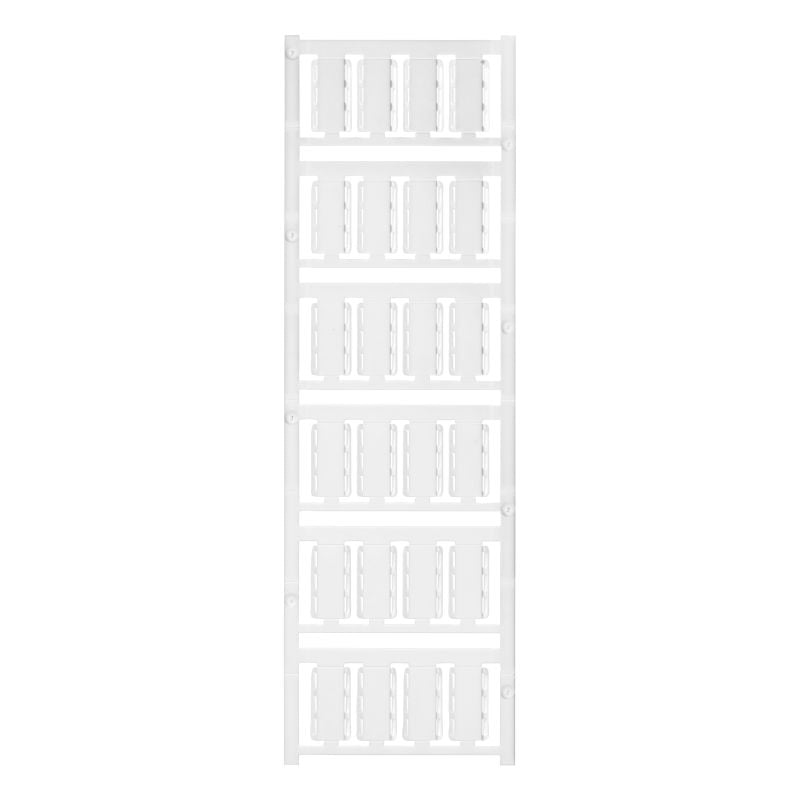

Introducing the SlimFix X model, expertly crafted for labeling conductors and cables with sizes ranging from 7 mm to 40 mm This marker measures 24 mm in height, 1362 mm in width, and boasts a depth of 08 mm, making it compact and easy to use With a net weight of just 0738 grams, this item is lightweight yet reliable Designed for use in various environments, it operates efficiently within a temperature spectrum of -50 to 120 °C.

Compliant with RoHS regulations, the markers come in a classic white hue and are packaged in MultiCard format, featuring one marker per combination Made from high-quality polyamide 66, it also has a flammability rating of V-0 for added peace of mind.

Features and Benefits:

    •Made of polyamide 66.

    •RoHS compliant without exemption.

    •Compatible with PRINTJET CONNECT printer.

    •Installation with cable ties.

    •Operating temperature range of -50 to 120 °C.

    •Cradle to gate product carbon footprint of 0.006 kg CO2 eq..

Specifications:

 Depth 0.8 mm
 Height 24 mm
 Width 13.62 mm
 Conductor cross-section, max 500 mm²
 Conductor cross-section, min 16 mm²
 Conductor O.D. (max) 40 mm
 Conductor O.D. (min) 7 mm
 Cross-section for connected wire 16 - 500 mm²
 UL 94 flammability rating V-0
 Basic material Polyamide 66
 Operating temperature range -50...120 °C
 Number of markers per packaging unit 1 MultiCard = Conductor and cable markers
 Size of labelling field 23.9 x 9 mm
 ETIM 6.0 EC001530
 ETIM 7.0 EC001530
 ETIM 8.0 EC001530
 ETIM 9.0 EC001530
 ETIM 10.0 EC001530
 ECLASS 9.0 27-40-04-01
 ECLASS 9.1 27-40-04-01
 ECLASS 10.0 27-40-04-01
 ECLASS 11.0 27-28-11-02
 ECLASS 12.0 27-28-11-02
 ECLASS 13.0 27-28-11-02
 ECLASS 14.0 27-28-11-02
 ECLASS 15.0 27-28-11-02
 RoHS Compliance Status Compliant without exemption
 REACH SVHC No SVHC above 0.1 wt%
