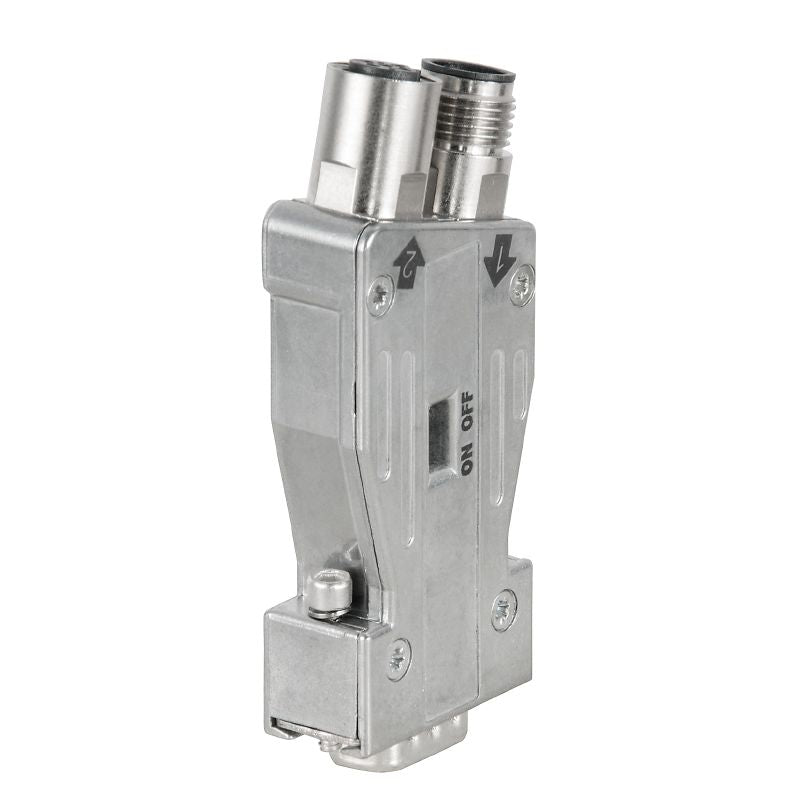

1555290000 - RoHS Compliant M12 D-Sub Connector with 180° Elbow Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CAN SUB-D M12 180 TERM connector, an essential component that meets RoHS compliance for versatile applications This connector boasts a 9-pole D-Sub bus interface along with an M12 A-coded connection for reliable operation between pins and sockets, achieving data transfer speeds up to 1 Mbps Constructed from durable ZnAl material, it features a clever elbow design that facilitates a 180° orientation.

Built for longevity, it supports an impressive 200 plugging cycles Additionally, the connector comes with a terminating resistor to enhance performance and is protected with an IP30 rating Operating efficiently in a temperature range from -20 °C to +70 °C, this connector is engineered for robustness and reliability.

Features and Benefits:

•ROHS compliant with exemption.

•Interlock UNC4-40.

•Max. humidity of 75% at +25°C, non-condensing.

•Tightening torque of 0.3 Nm.
