1524720000 - IP67 M8 Y Connector, 4A, 24V, RoHS Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

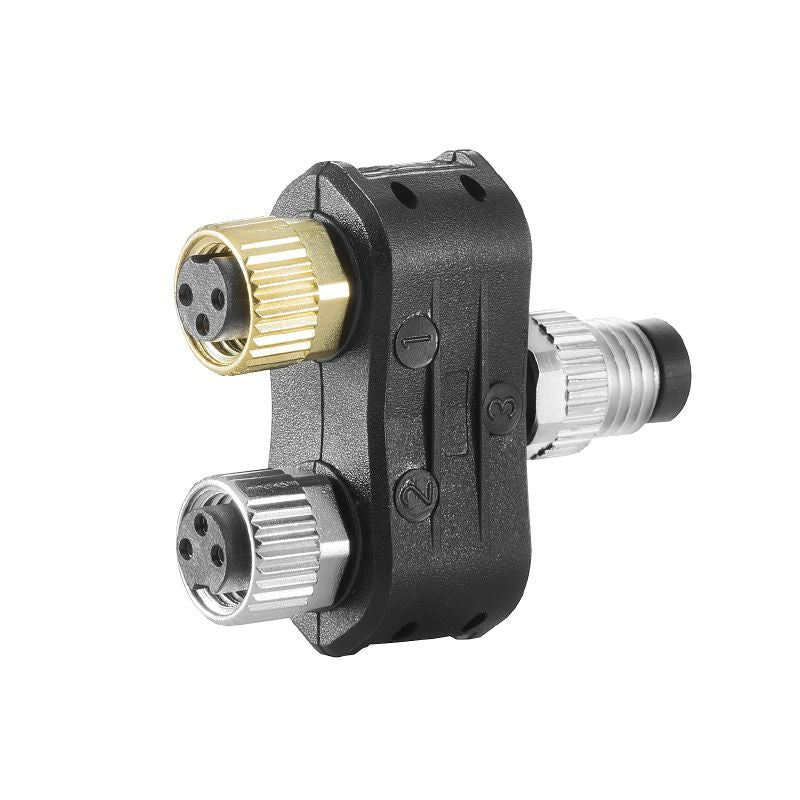

Introducing the SAI-Y-4/3 M8-M8 Y connector, a reliable solution for establishing M8 pin-to-M8 socket connections across various applications This connector is RoHS compliant and holds UL certificate number E307231, ensuring a high standard of safety and quality With a capacity for a nominal current of 4A and a nominal voltage of 24V, it supports up to 100 plugging cycles, providing durability over time.

The connector's IP67 rating guarantees robust protection, making it ideal for challenging environments, and it operates effectively within a temperature spectrum of -25 to +85 °C Built from strong PUR material, it features a gold-plated contact surface that enhances conductivity for optimal performance.

Features and Benefits:

•RoHS compliant with exemption.

•UL certified with certificate number E307231.

•Nominal current of 4A and nominal voltage of 24V.

•Rated for a minimum of 100 plugging cycles.

•IP67 protection rating for high durability in various environments.

Specifications:
