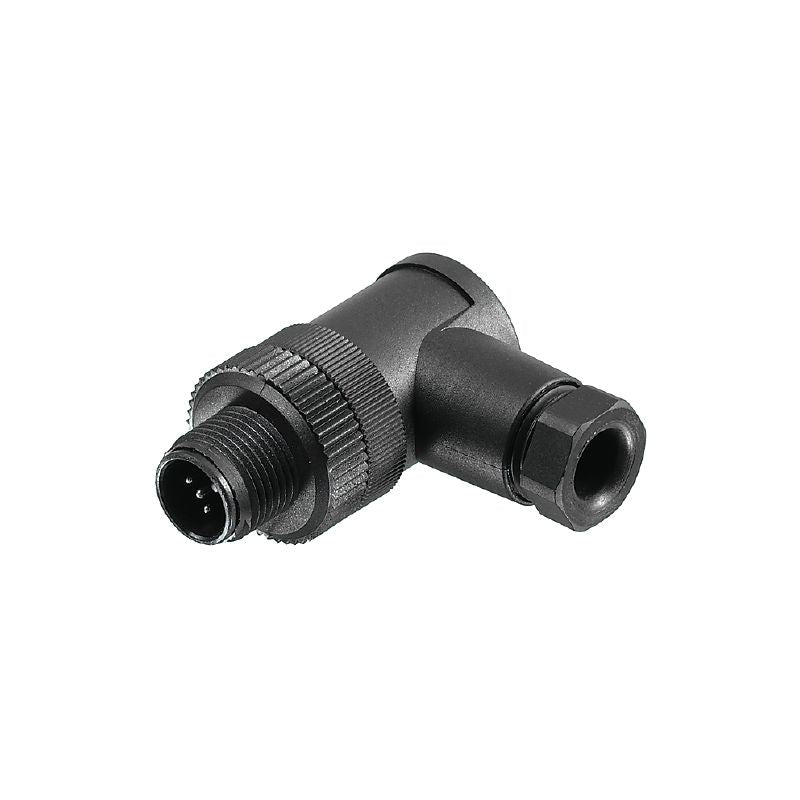

1481150000 - M12 Field Attachable Connector, IP67, 4 Poles, 8mm Max Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile field attachable connector, specially designed for M12 applications and compliant with RoHS standards This robust connector accommodates cable diameters ranging from 6mm to 8mm, supporting reliable A-coded connections With a conductor cross-section capability of 014mm² to 075mm², it features male contacts for optimal performance Crafted from durable PA housing material, it offers impressive insulation resistance of 10^8 Ω, a nominal current rating of 4A, and operates at a voltage of 250V.

Equipped with four poles, this connector withstands a minimum of 50 plugging cycles, making it both dependable and long-lasting It comes with a severity pollution level of 3 and provides a robust protection degree of IP67, ensuring it performs well even in challenging environments Designed for a wide operational temperature range of -40 to +85 °C, it employs a screw connection type for secure and efficient assembly.

Additionally, it adheres to IEC 61076-2-101 standards, making it a reliable choice for your connectivity needs.

Features and Benefits:

•IP67 protection degree.

•RoHS compliant.

•Suitable for maximum cable diameter of 8mm.

•Screw connection type.

Specifications:
