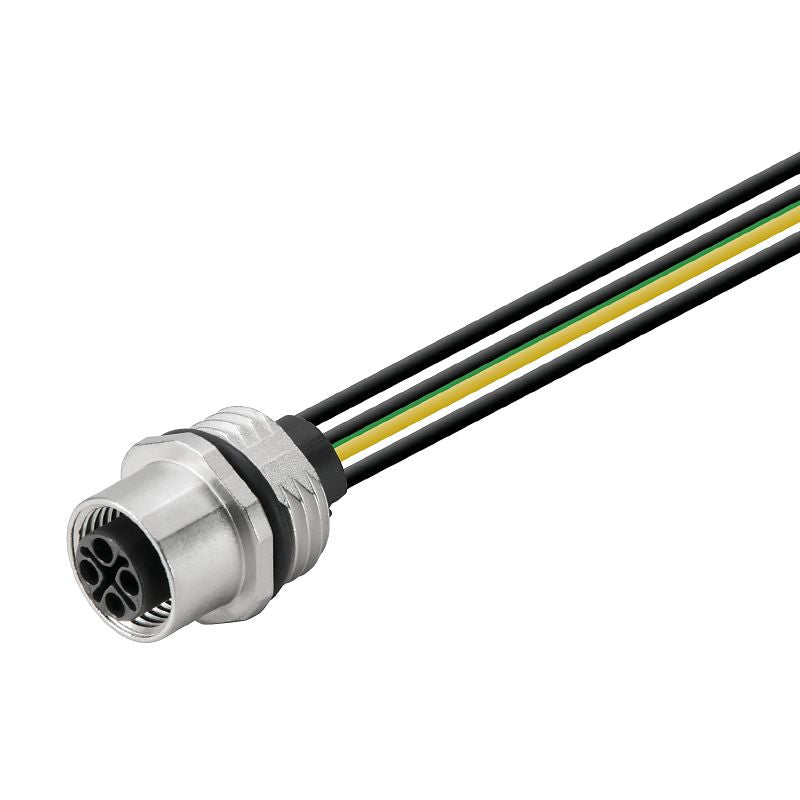

1467940000 - 0.2m Female Socket with M16 Thread and Built-in Plugs

1467940000 - 0.2m Female Socket with M16 Thread and Built-in Plugs

SKU: SKU: 1467940000 Download PDF

Variant:
  • 1467940000 - 0.2m Female Socket with M16 Thread and Built-in Plugs
Regular price Now $12.93
Regular price BEFORE   $0.00 Sale price Now $12.93
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile front-mounting solution that includes integrated plugs and a straight female socket design This product is equipped with a mounting thread that adheres to M 16 x 15 standards and features a robust four-pole configuration With a cable length of 02 meters, it’s ideal for a variety of applications where reliable connections are essential.

Features and Benefits:

    •RoHS compliant.

    •Gold-plated contact surface.

    •Zinc diecast housing.

    •IP67 protection when screwed in.

    •Suitable for -40 to +85 °C temperature range.

    •Customizable plug-in connectors.

Specifications:

 Core cross-section AWG AWG 16
 Nominal current 12 A
 Nominal voltage 630 V

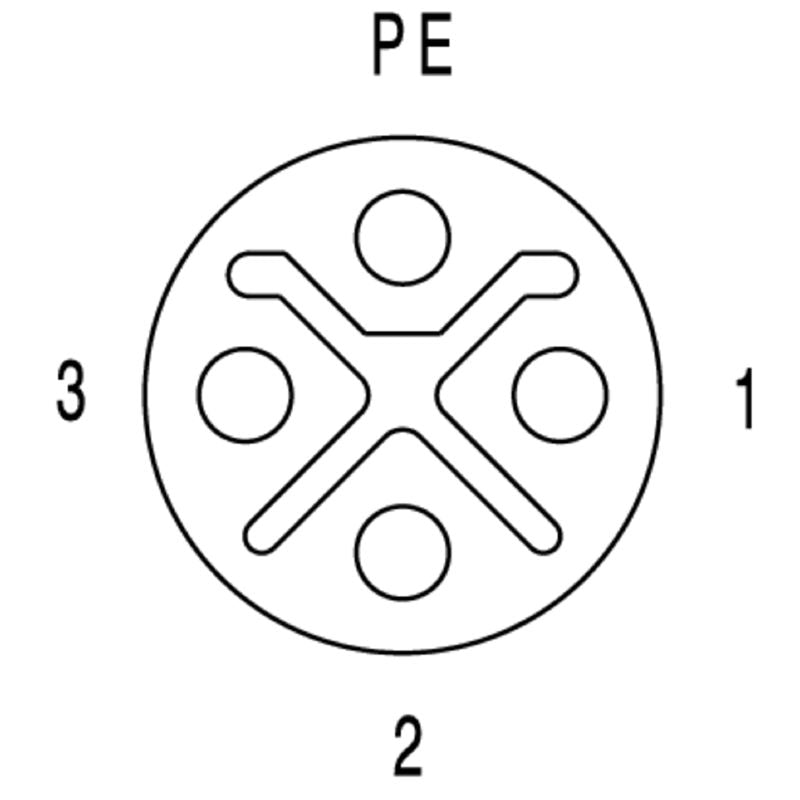

 Number of poles 4
 Plugging cycles ≥ 100
 Strand / cable length 0.2 m
 Coding S-coded
 Connection 1 M12
 Connection 2 Flying wires
 Mounting thread M 16 x 1.5
 Temperature range of housing -40 … +85 °C
