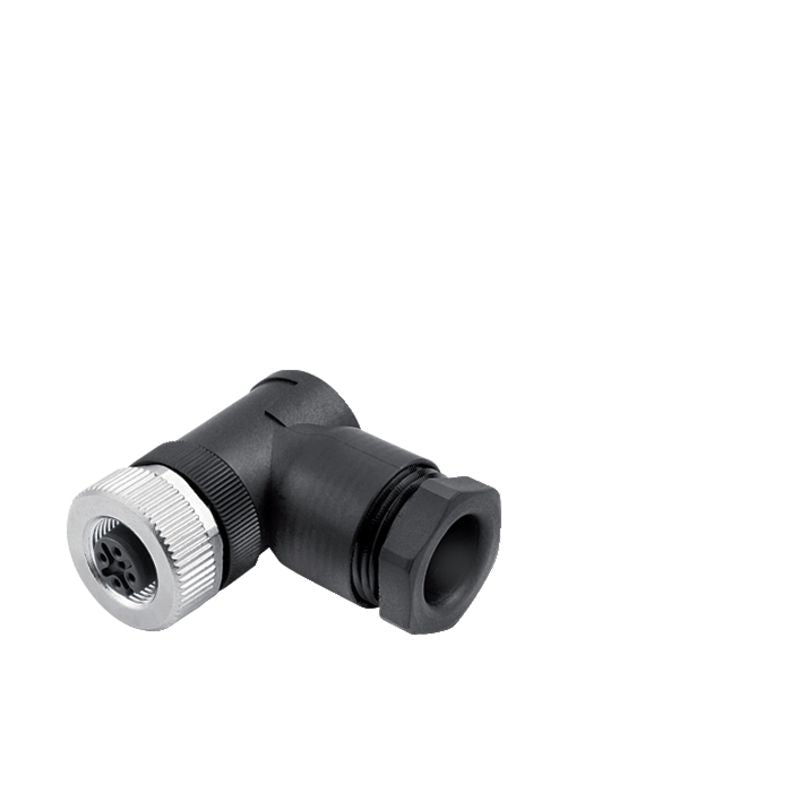

1467670000 - M12 Field Attachable Connector for Reliable Connectivity

1467670000 - M12 Field Attachable Connector for Reliable Connectivity

SKU: SKU: 1467670000   Download PDF

Select a Variant:
  • 1467670000 - M12 Field Attachable Connector for Reliable Connectivity
Qty:
Regular price Now $5.72   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $5.72 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Connect with confidence using this M12 field attachable connector, built for superior durability and compliance across various applications Its versatile design guarantees reliable connectivity, making it an excellent choice for your connectivity needs.

Features and Benefits:

    •RoHS compliant.

    •IP67 protection degree.

    •Gold-plated contact surface.

    •M12 connection.

    •Capable of withstanding up to 100 plugging cycles.

Specifications:

 Cable diameter, max. 10 mm
 Cable diameter, min. 8 mm
 Cable gland PG 11
 Coding A-coded
 Conductor cross-section, max. 1.5 mm²
 Conductor cross-section, min. 0.14 mm²
 Connection cross-section, max. 1.5 mm²
 Connection cross-section, min. 0.5 mm²
 Contact material CuZn
 Gender of contact Female
 Housing main material PA
 Insulation resistance 10^8 Ω
 Nominal current 8 A
 Nominal voltage 250 V
 Number of poles 4
 Pollution severity 3
 Rated current Contacts 1-4 8A, contact 5 2A
 Temperature range of housing -40 … +85 °C
 Threaded ring material Diecast zinc
 Type of connection Screw connection
 Connector standard IEC 61076-2-101
