1467630000 - M8 8-Pole Female Connector, 0.2m Length, IP67 Rated

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

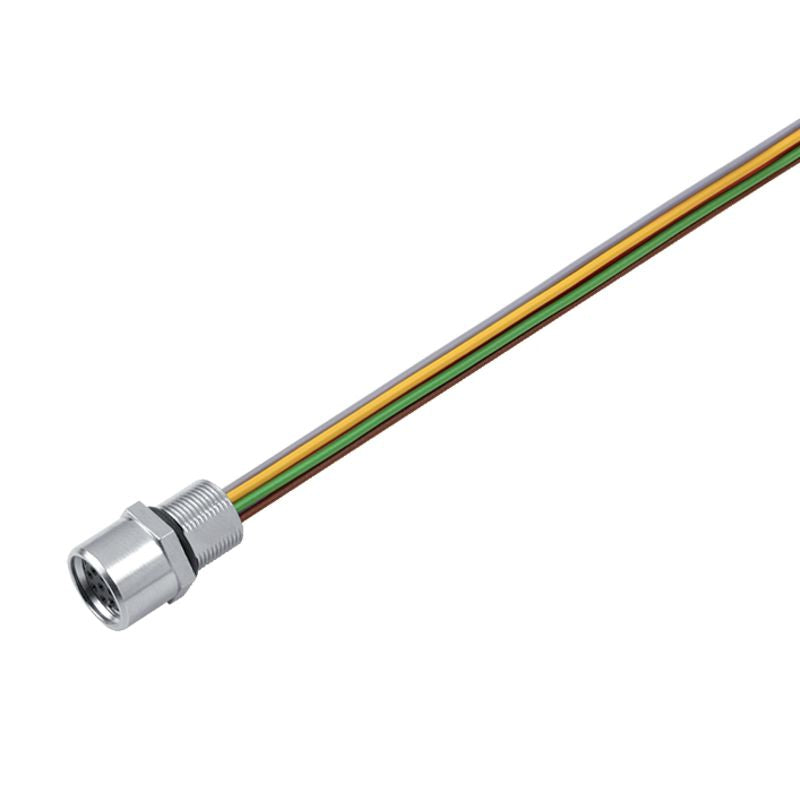

Discover the SAIE-M8B-8-02U-FP built-in plug connector, designed with female M8 threaded sockets for a secure connection This connector boasts 8 poles and includes a cable measuring 02 meters in length With its gold-plated contact surface, it ensures reliable performance while adhering to RoHS standards Capable of handling a nominal current of 15 A and a voltage of 30 V, this connector is also rated IP67 when properly secured, providing excellent resistance against dust and water exposure.

Ideal for various applications, it combines functionality with durability.

Features and Benefits:

•Built-in plugs with M8 thread.

•Gold-plated contact surface.

•IP67 protection degree when screwed in.

•Temperature range of housing from -25 to +85 °C.

•Over 100 plugging cycles.

•Compliant with IEC 61076-2-104 standard.

Specifications:
