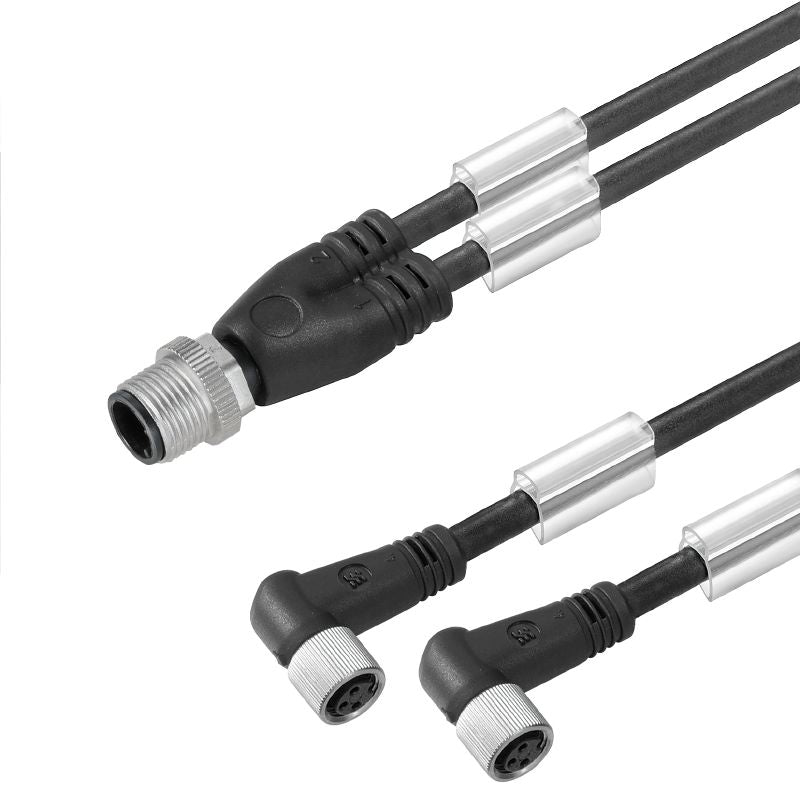

1466360300 - 3m PVC M12/M8 Connecting Line for Sensors and Actuators

1466360300 - 3m PVC M12/M8 Connecting Line for Sensors and Actuators

SKU: SKU: 1466360300   Download PDF

Select a Variant:
  • 1466360300 - 3m PVC M12/M8 Connecting Line for Sensors and Actuators
Qty:
Regular price Now $20.15   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $20.15 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile connecting line tailored for sensor and actuator applications, featuring M12 and M8 connections This product boasts twin cabling and is designed without shielding for a streamlined setup Crafted from PVC, the sheath material adheres to halogen-free standards Please note, this item will be phased out eventually, but is available for order until November 29, 2025.

Features and Benefits:

    •Halogen free.

    •Not configurable cable length.

    •Resistant to welding beads: No.

    •Suitable for cable carriers: No.

Specifications:

 Cable length 3 m
 Core cross-section 0.25 mm²
 Number of poles 3
 Outer diameter 4.5 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP67, IP68 when screwed in, IP65, IP66
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Tightening torque M12: 0.8 - 1.2 Nm; M8: 0.5 - 0.6 Nm
 Connector standard IEC 61076-2-101, IEC 61076-2-104
