1465990500 - M12 5m Non-Connector Sensor/Actuator, 4 Poles, PVC

1465990500 - M12 5m Non-Connector Sensor/Actuator, 4 Poles, PVC

SKU: SKU: 1465990500

Variant:
  • 1465990500 - M12 5m Non-Connector Sensor/Actuator, 4 Poles, PVC
Regular price Now $10.32
Regular price BEFORE   $0.00 Sale price Now $10.32
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile component from our range of sensors and actuators This particular model does not include a connector and adheres to M12 specifications With a generous length of 5 meters and featuring 4 poles, it is designed to meet various operational needs This unshielded option does not come with an LED indicator Crafted from PVC for its sheath, this product also complies with halogen regulations, ensuring safety and reliability.

Features and Benefits:

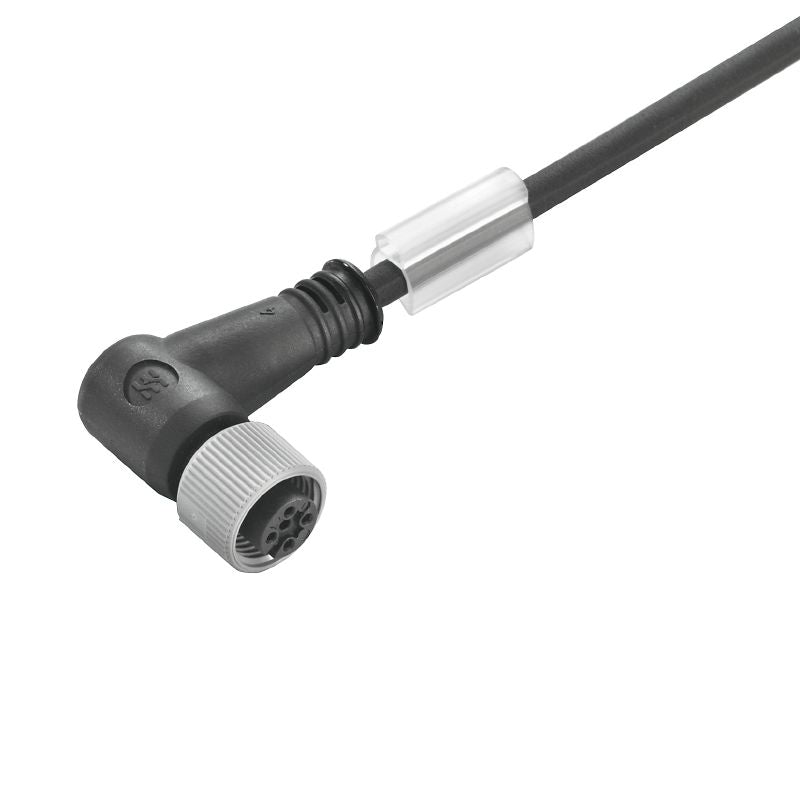

    •Angled socket design.

    •RoHS compliant with exemption.

    •Gold-plated contacts for better conductivity.

    •Operating temperature range from -30 to 80 °C.

    •IP65, IP66, IP67, and IP68 protection ratings when securely fitted.

Specifications:

 Cable length 5 m
 Core cross-section 0.34 mm²
 Outer diameter 5.3 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 250 V
 Temperature range of housing -25…+85 °C
 Connection thread M12
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Protection degree IP65, IP66, IP67, IP68
