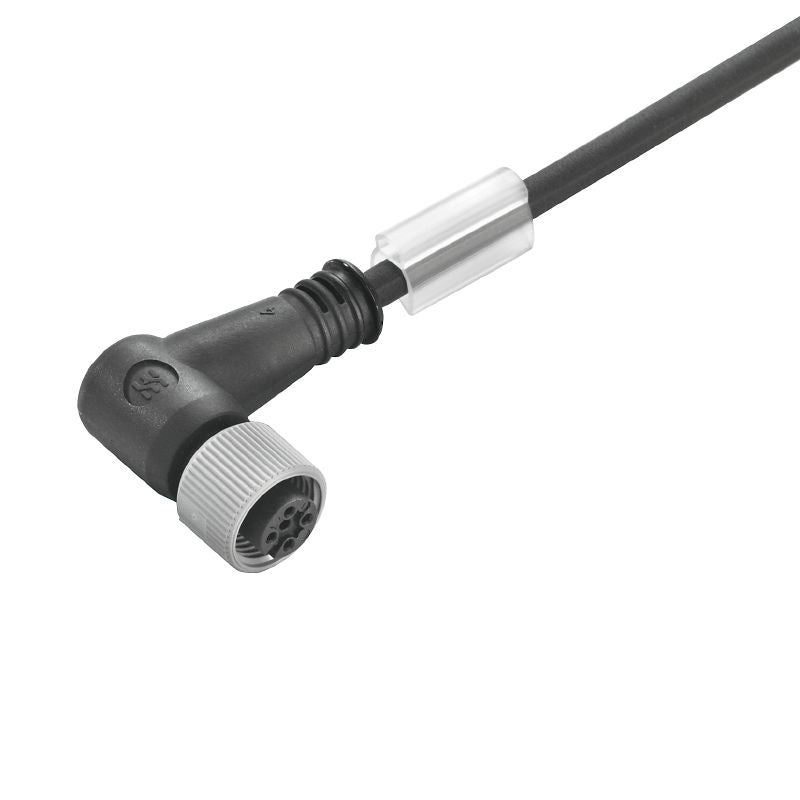

1465980150 - 1.5m M12 3-Pole Sensor/Actuator Line, PVC Sheath

1465980150 - 1.5m M12 3-Pole Sensor/Actuator Line, PVC Sheath

SKU: SKU: 1465980150

Select a Variant:
  • 1465980150 - 1.5m M12 3-Pole Sensor/Actuator Line, PVC Sheath
Qty:
Regular price Now $6.33   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $6.33 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover this versatile sensor/actuator line designed for functionality and ease of use Measuring 15 meters in length, it includes a 3-pole M12 connector, while one end remains without a connector for added flexibility The angled socket enhances accessibility, and the unshielded design ensures compatibility with various applications Crafted from halogenated PVC, this sheath material provides robust protection.

Please note that this item will be discontinued soon but is available for order until November 29, 2025.

Features and Benefits:

    •RoHS compliant with exemption.

    •Gold-plated contact surface.

    •Housing made from PUR material.

    •Rated for a nominal current of 4 A.

Specifications:

 Cable length 1.5 m
 Core cross-section 0.34 mm²
 Number of poles 3
 Outer diameter 4.9 mm ± 0.2 mm
 Sheath material PVC
 Sheathing color black
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Nominal voltage 250 V
 Plugging cycles ≥ 100
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Threaded ring material Plastic
 Tightening torque M12: 0.8 - 1.2 Nm
