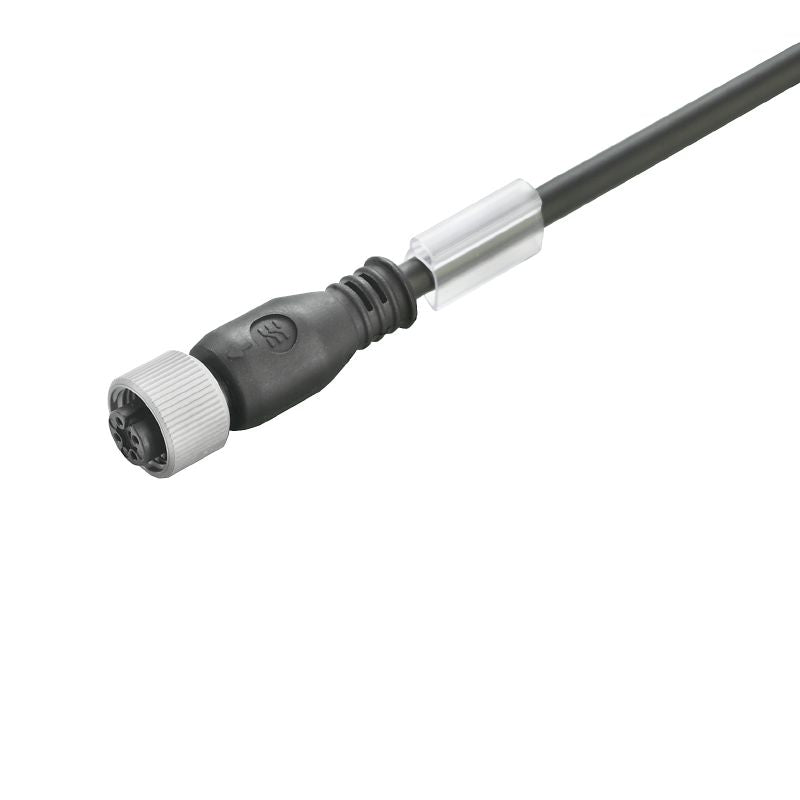

1465960300 - 3m PVC Female Socket for Sensors & Actuators

1465960300 - 3m PVC Female Socket for Sensors & Actuators

SKU: SKU: 1465960300

Variant:
  • 1465960300 - 3m PVC Female Socket for Sensors & Actuators
Regular price Now $8.47
Regular price BEFORE   $0.00 Sale price Now $8.47
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover this versatile sensor and actuator component, measuring 3 meters in length and featuring a 4-pole female socket at one end Crafted from halogen-containing PVC material, this design does not offer shielding or LED features Please note that the cable length is fixed and cannot be adjusted Ideal for various applications requiring reliable connectivity.

Features and Benefits:

    •Not shielded.

    •LED feature is absent.

    •Halogen present.

    •Straight female socket design.

    •Outer cladding meets UL AWM style standards.

    •Insulation is made of PVC.

Specifications:

 Cable length 3 m
 Number of poles 4
 Core cross-section 0.34 mm²
 Outside diameter 5.3 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Nominal current 4 A
 Nominal voltage 250 V
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Housing main material PUR
 Connection thread M12
 Plugging cycles ≥ 100
 Tightening torque M12: 0.8 - 1.2 Nm
