1465910150 - 1.5m PVC Sensor/Actuator Line with 4-Pole Connector

1465910150 - 1.5m PVC Sensor/Actuator Line with 4-Pole Connector

SKU: SKU: 1465910150

Variant:
  • 1465910150 - 1.5m PVC Sensor/Actuator Line with 4-Pole Connector
Regular price Now $6.69
Regular price BEFORE   $0.00 Sale price Now $6.69
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

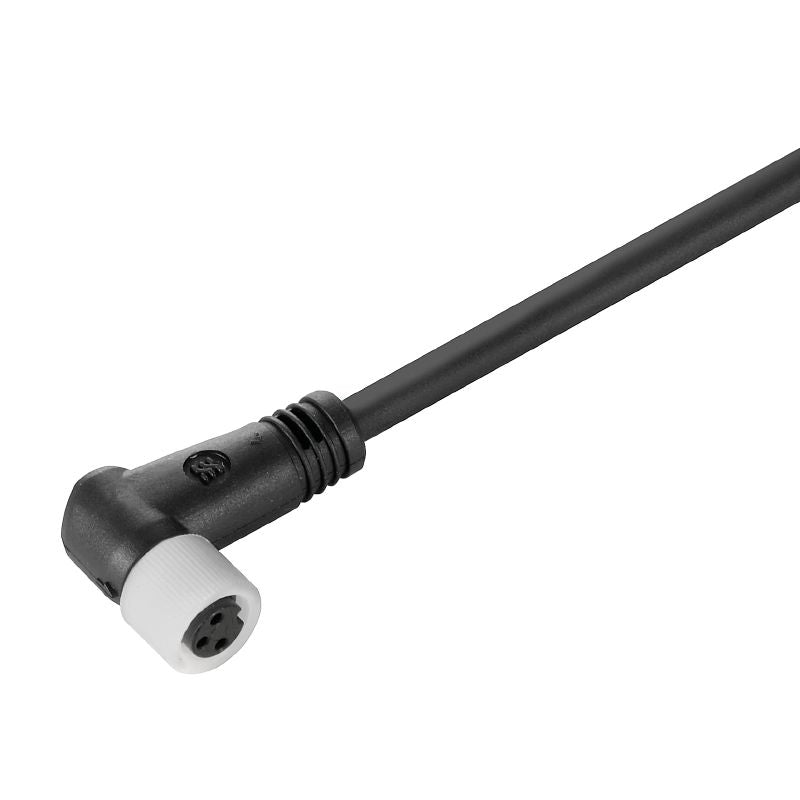

Introducing our sensor/actuator line, boasting a convenient 15-meter length and an angled socket, though please note that a connector is not included This product is constructed with a durable PVC sheath, meeting halogen compliance standards It features four poles and is designed without shielding or a built-in LED, making it suitable for various applications.

Features and Benefits:

    •Socket is angled.

    •Composed of PVC material.

    •No shielding present.

    •Halogen compliant.

    •Defined cable length of 1.5 meters.

    •Includes gold-plated contact surface.

    •High insulation resistance.

Specifications:

 Cable length 1.5 m

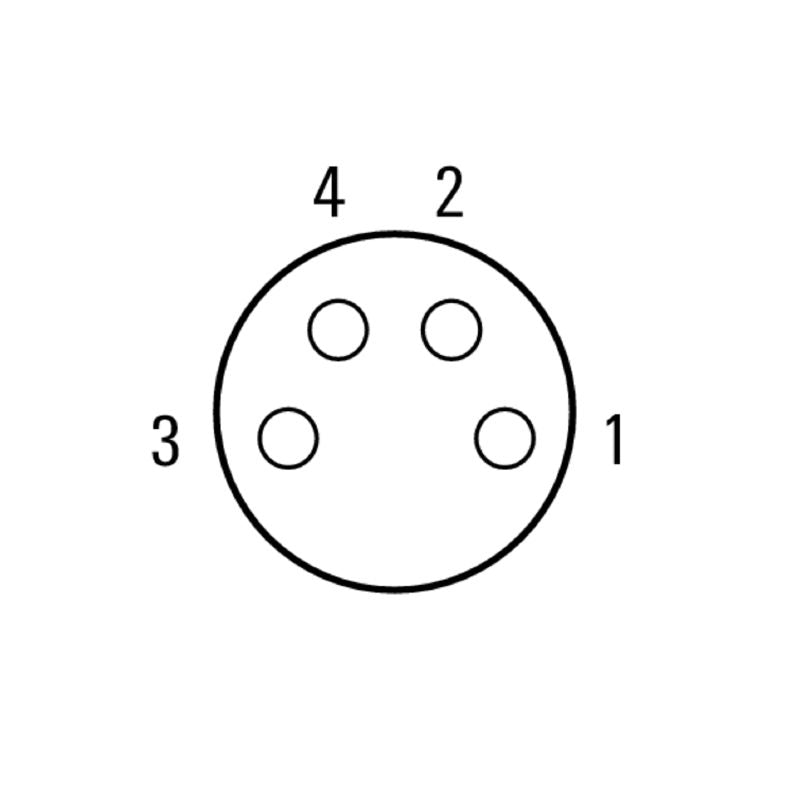

 Number of poles 4
 Core cross-section 0.25 mm²
 Outside diameter 4.8 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Nominal current 4 A
 Nominal voltage 30 V
 Protection degree IP65, IP66, IP67, IP68
 Insulation resistance 10^8 Ω
 Connection thread M8
 Plugging cycles ≥ 100
