1465881000 - 10m 4-Pole PVC Sensor/Actuator Line, No Connector

1465881000 - 10m 4-Pole PVC Sensor/Actuator Line, No Connector

SKU: SKU: 1465881000

Variant:
  • 1465881000 - 10m 4-Pole PVC Sensor/Actuator Line, No Connector
Regular price Now $14.10
Regular price BEFORE   $0.00 Sale price Now $14.10
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

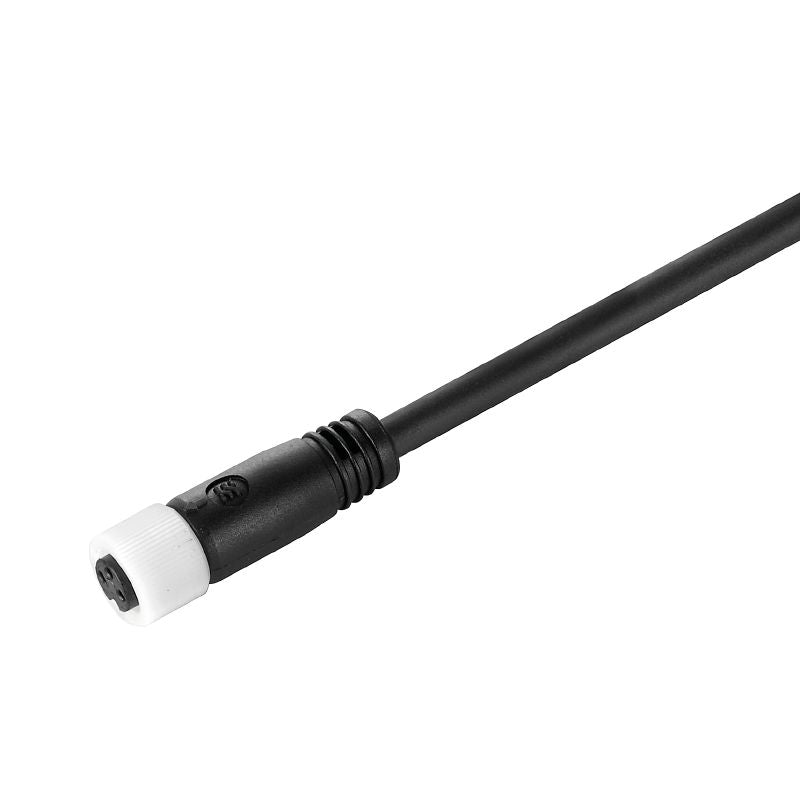

Introducing a reliable addition to your toolkit, this sensor/actuator component features a connector-free end for versatile applications With a generous length of 10 meters, it incorporates 4 poles for efficient connectivity The straight female socket design is straightforward and practical, lacking shielding and an integrated LED for straightforward functionality Crafted from halogen-free PVC, the sheath offers durability while promoting safety.

Features and Benefits:

    •Straight female socket design.

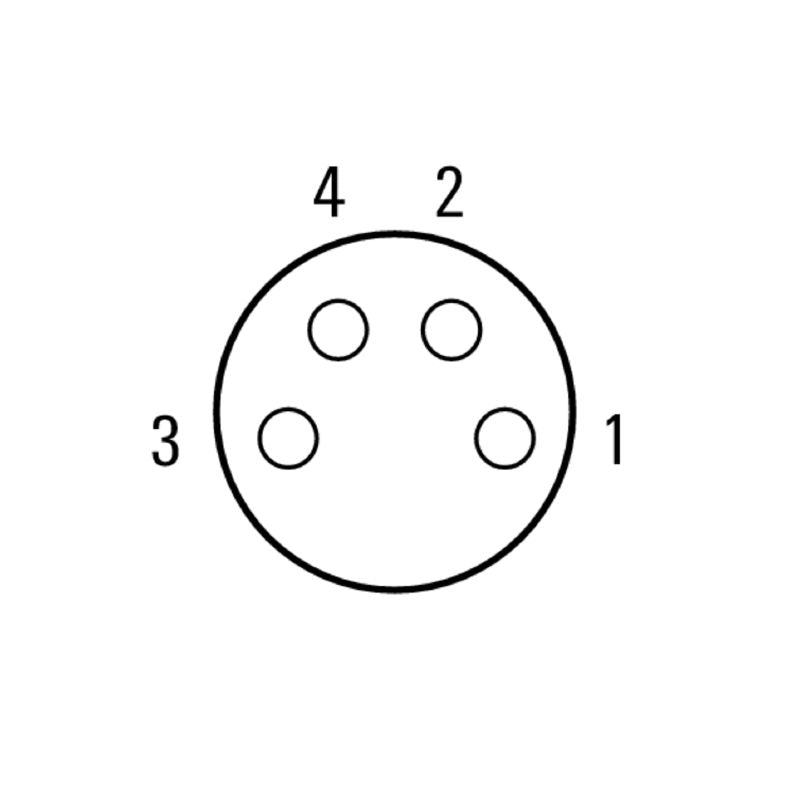

    •4-pole configuration.

    •PVC sheath material.

    •Halogen-free.

    •No shielding.

    •LED not included.

Specifications:

 Cable length 10 m
 Core cross-section 0.25 mm²
 Outside diameter 4.8 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 30 V
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Temperature range of housing -25…+85 °C
 Connection thread M8
 Coding A-coded
 Plugging cycles ≥ 100
 Threaded ring material POM
