1460320000 - M12 Pin Connector, 4-Pole, 0.5m Cable, M16 Mounting Thread

1460320000 - M12 Pin Connector, 4-Pole, 0.5m Cable, M16 Mounting Thread

SKU: SKU: 1460320000 Download PDF

Variant:
  • 1460320000 - M12 Pin Connector, 4-Pole, 0.5m Cable, M16 Mounting Thread
Regular price Now $19.75
Regular price BEFORE   $0.00 Sale price Now $19.75
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

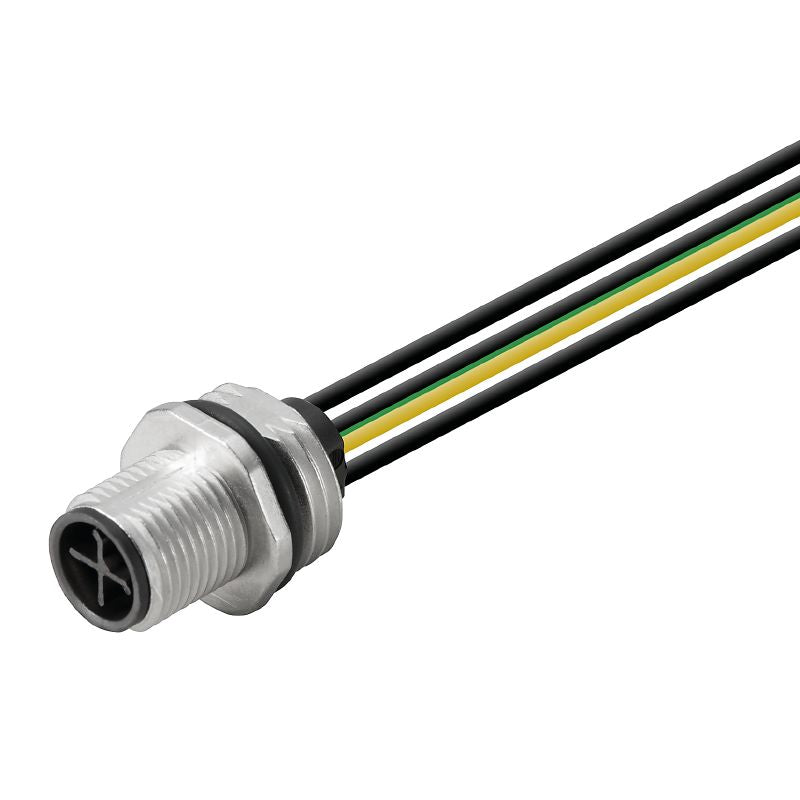

Optimize your connections with this product featuring integrated plugs and a straight M12 pin configuration Equipped with a mounting thread measuring M 16 x 15, it supports a four-pole design The 05 m cable length makes it an excellent choice for front mounting applications.

Features and Benefits:

    •Gold-plated contact surface.

    •Brass housing material with nickel plating.

    •IP67 protection degree when secured.

    •Able to withstand a temperature range from -40 to +85 °C.

Specifications:

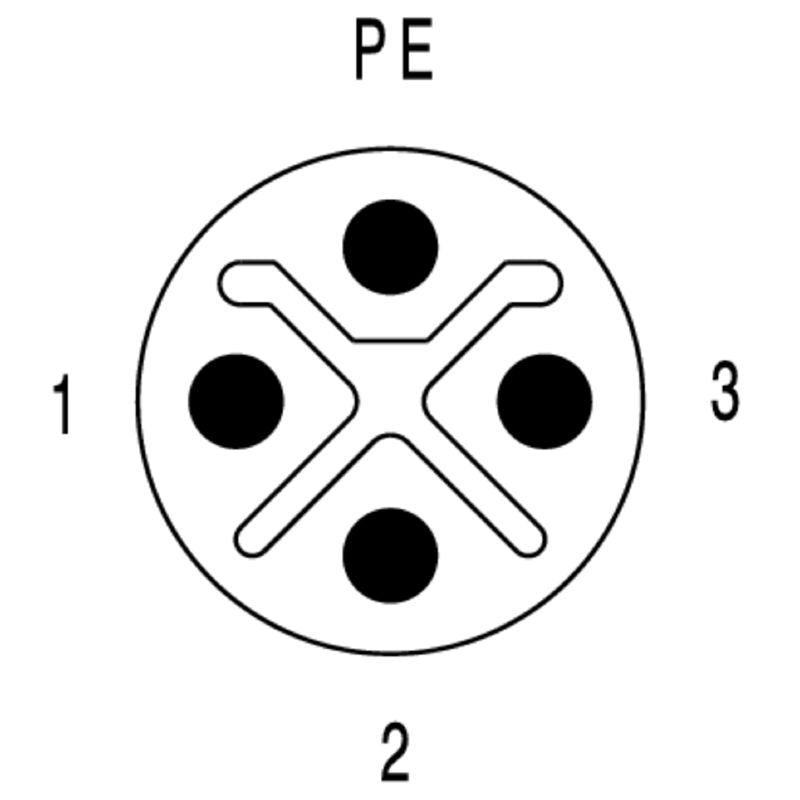

 Number of poles 4
 Nominal current 12 A
 Nominal voltage 630 V
 Rated current 12 A
 Strand / cable length 0.5 m
 Plugging cycles ≥ 100
 Connector standard IEC 61076-2-111
 Core cross-section AWG AWG 16
 Temperature range of housing -40 … +85 °C
 Protection degree IP67
