1444180150 - 1.5m M8 Female Socket Sensor/Actuator with 3 Poles

1444180150 - 1.5m M8 Female Socket Sensor/Actuator with 3 Poles

SKU: SKU: 1444180150   Download PDF

Select a Variant:
  • 1444180150 - 1.5m M8 Female Socket Sensor/Actuator with 3 Poles
Qty:
Regular price Now $9.61   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $9.61 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

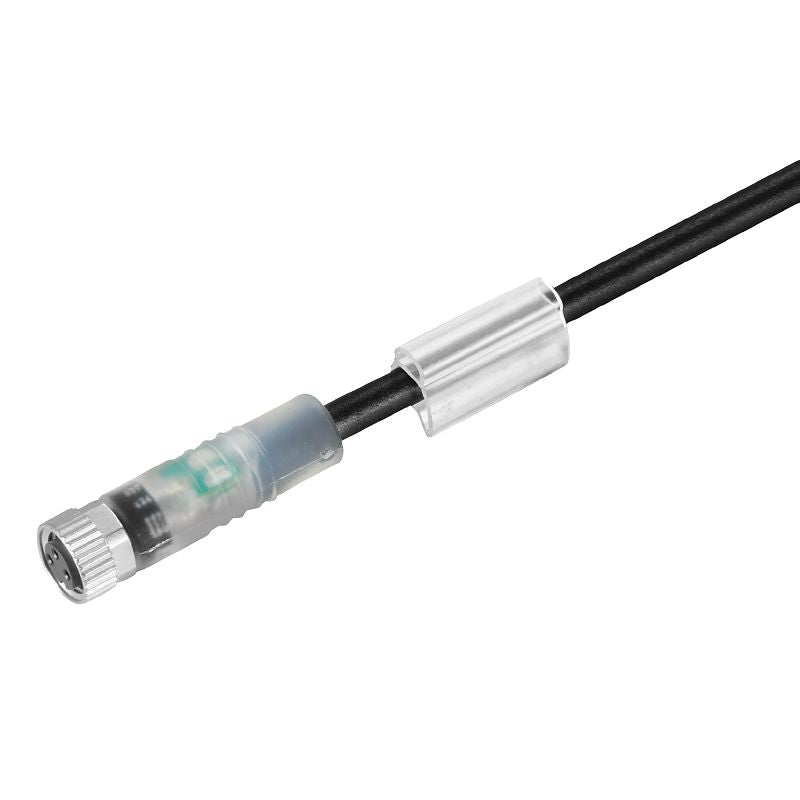

Introducing the SAIL-M8BG-3L15U, an essential component in the sensor and actuator lineup This 15-meter straight female socket features three poles and comes without a connector on one end, offering straightforward integration for your projects Constructed from high-quality PUR material, this unit is unshielded and includes an integrated LED for added functionality Perfect for various applications where reliability and performance are key.

Features and Benefits:

    •Halogen-free.

    •Hydrolysis and microbe resistant.

    •LED indicator included.

    •Temperature range for moving applications: -25...80 °C.

    •Temperature range for stationary applications: -40...80 °C.

    •Suitable for cable carriers.

    •Color coding available in brown, blue, and black.

Specifications:

 Acceleration 5 m/s²
 Bending cycles 12 Mio
 Cable length 1.5 m
 Core cross-section 0.25 mm²
 Outside diameter 4.1 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 24 V
 Insulation resistance 10^8 Ω
 IP protection degree IP67, IP68 when screwed in, IP65, IP66
 Contact surface Gold-plated
 Housing main material PUR
 Sheath material PUR
