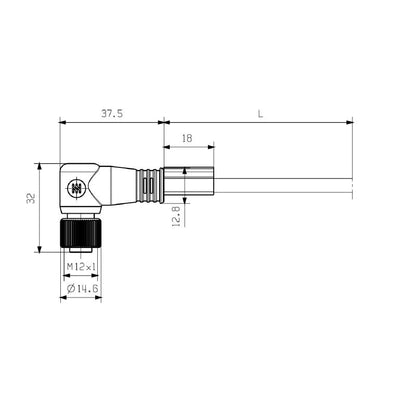

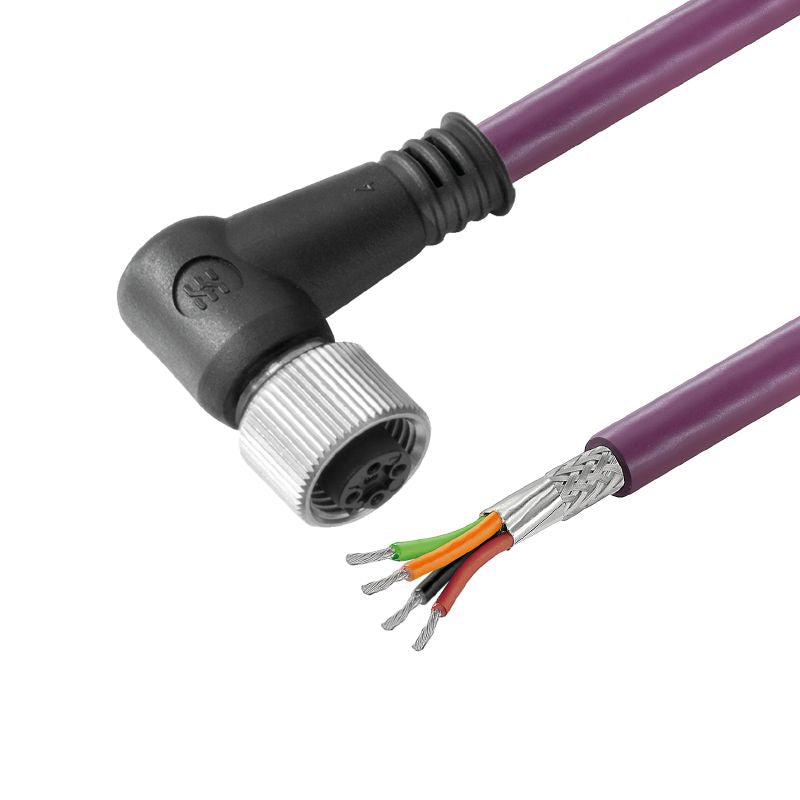

1431510300 - 3m Shielded M12 4-Pole Socket with PVC Sheath

1431510300 - 3m Shielded M12 4-Pole Socket with PVC Sheath

SKU: SKU: 1431510300   Download PDF

Select a Variant:
  • 1431510300 - 3m Shielded M12 4-Pole Socket with PVC Sheath
Qty:
Regular price Now $40.22   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $40.22 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our durable M12 shielded bus line socket, featuring 4 poles and an impressive 3-meter length This connector is encased in a robust PVC sheath, ensuring stability and protection, and is optimized for a wide operational temperature range of -25 to +80 degrees Celsius Please note, this model does not include an LED indicator Perfect for various applications where reliability is key.

Features and Benefits:

    •Compliant with RoHS, with an exemption.

    •Cable length is 3 meters.

    •B-coded connections.

    •IP67 protection degree for dust and water resistance.

    •Gold-plated contact surface.

    •Nominal current rating of 4A and voltage rating of 250V.

    •Plugging cycles rated for at least 100 cycles.

Specifications:

 Bending radius, min., moving 8 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Core cross-section AWG AWG 22
 Outside diameter 7.8 mm ± 0.2 mm

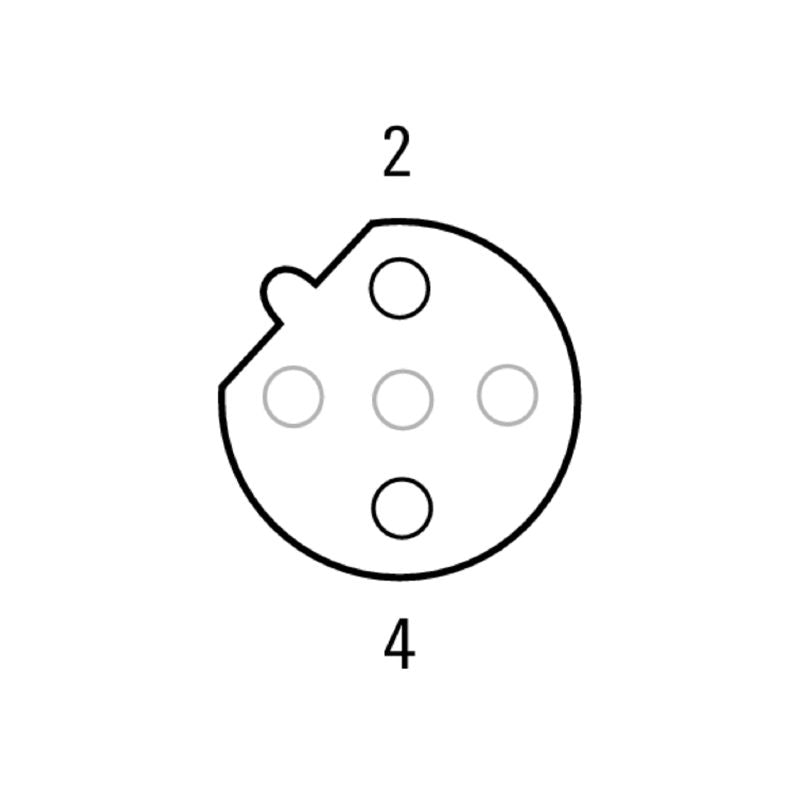

 Number of poles 4
 Insulation PVC
 Threaded ring material Brass, nickel-plated
 Tightening torque M12: 0.8 - 1.2 Nm
 Insulation resistance 10^8 Ω
 Nominal voltage 250 V
 Protection degree IP67
 Temperature range of housing -25…+80 °C
