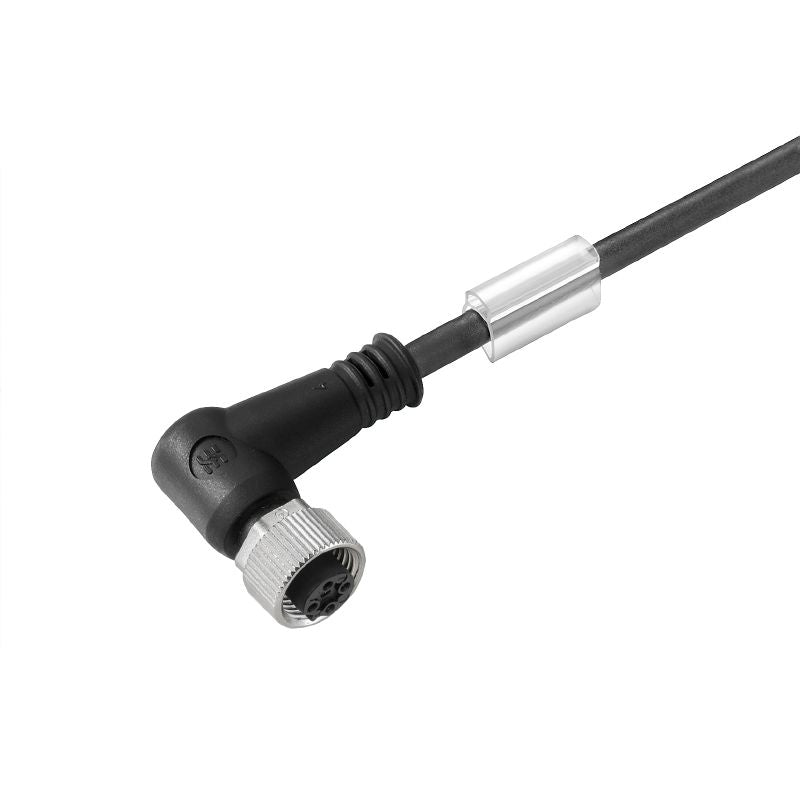

1424282000 - 20m Shielded Sensor/Actuator Line with 12 Poles

1424282000 - 20m Shielded Sensor/Actuator Line with 12 Poles

SKU: SKU: 1424282000   Download PDF

Select a Variant:
  • 1424282000 - 20m Shielded Sensor/Actuator Line with 12 Poles
Qty:
Regular price Now $89.90   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $89.90 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing an advanced component from our sensor and actuator series, this product boasts a unique connector-less design on one end and features a 12-pole configuration With an impressive length of 20 meters, it comes equipped with an angled socket for enhanced functionality The item is also shielded for protection and is crafted from halogen-free PUR material, ensuring both safety and durability.

Features and Benefits:

    •Shielded design.

    •Angled socket.

    •Made from PUR sheath material.

    •Compliant with RoHS exemptions.

Specifications:

 Acceleration 5 m/s²
 Bending cycles 1 mill.
 Bending radius, min., moving 12 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Cable length 20 m
 Core cross-section 0.14 mm²
 Number of poles 12
 Sheath material PUR
 Speed 100 m/s
 Temperature range, moving -30...90 °C
 Temperature range, stationary -40...90 °C
 Nominal current 1.5 A
 Nominal voltage 30 V
 Protection degree IP65, IP66, IP67
 Threaded ring material Diecast zinc
 Tightening torque M12: 0.8 - 1.2 Nm
 Connector standard IEC 61076-2-101
