1416730000 - Durable M8 Connector with Gold-Plated Contacts, IP67 Rated

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

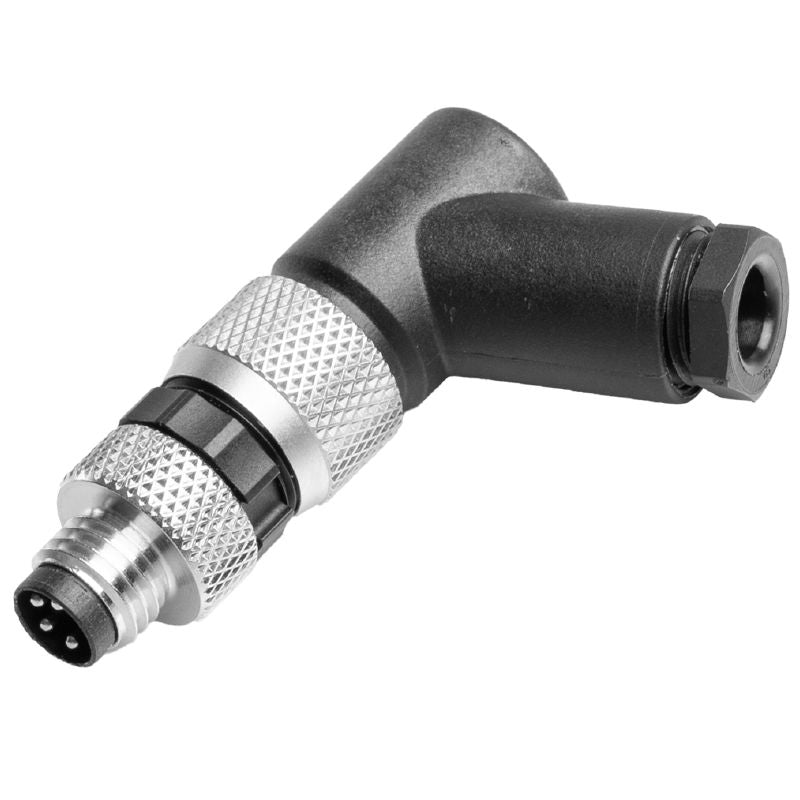

Introducing the M8 field attachable connector, model SAISWS-P-4A-35/5-M8, engineered for demanding environments Weighing just 14 grams, this connector is RoHS compliant and features a gold-plated male contact for reliable connections Crafted from durable PA material, it is built to withstand diverse conditions, making it a trustworthy choice for various applications This connector accommodates cable sizes from 3.

5 mm to 5 mm, supporting connection cross-sections of 014 mm² to 05 mm² It is rated for a nominal current of 4 A and operates effectively at a nominal voltage of 30 V With an IP67 protection rating, it is resistant to dust and water, and it operates safely in temperatures ranging from -40 °C to +85 °C Please note that this connector does not support shield connections and utilizes a screw-type connection for secure attachment.

Features and Benefits:

•RoHS compliant with exemption.

•IP67 protection degree.

•Gold-plated contact surface.

•Can withstand temperatures from -40 °C to +85 °C.

•Male connectors with screw connection.

Specifications:
