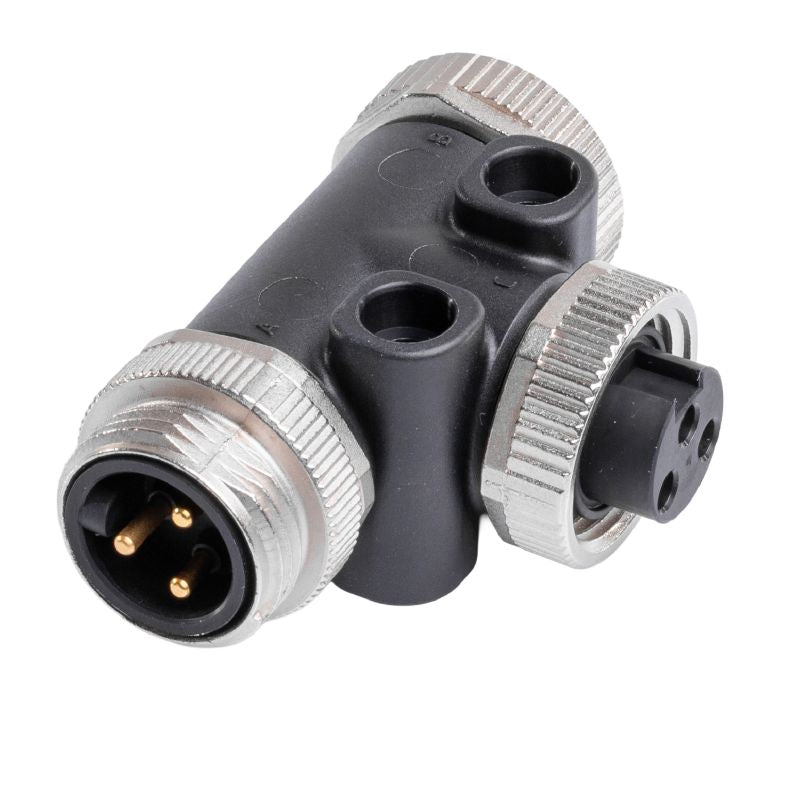

1413920000 - 7/8" Compact Y Connector for Plug-In Connections

1413920000 - 7/8" Compact Y Connector for Plug-In Connections

SKU: SKU: 1413920000   Download PDF

Select a Variant:
  • 1413920000 - 7/8" Compact Y Connector for Plug-In Connections
Qty:
Regular price Now $38.72   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $38.72 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience seamless connectivity with the SAI-Y-7/8 3P, a 7/8" Y connector optimized for plug-in connections This compact connector adheres to RoHS standards, ensuring safety and compliance with environmental regulations It also comes with multiple certification approvals, confirming its suitability for use in a variety of applications.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Protection degree rated at IP67.

    •Temperature range from -30 to +90 °C.

    •Nominal current rating of 12A.

    •Nominal voltage rating of 300V.

Specifications:

 Net weight 70 g
 Connection 1 7/8"/7/8"
 Connection 2 Screw
 Connection thread 7/8"
 Contact material, pin CuZn
 Contact material, socket CuZn
 Contact surface Au (Gold)
 Housing main material PUR
 Nominal current 12 A
 Nominal voltage 300 V
 Number of poles 3
 Plugging cycles ≥ 50
 Pollution severity 3
 Shield connection No
 Temperature range of housing -30…+90 °C
 Tightening torque 7/8": 1.5 Nm
 Coding none
 ETIM 6.0 EC002925
 ETIM 7.0 EC002925
 ETIM 8.0 EC002925
 ETIM 9.0 EC002925
 ETIM 10.0 EC002925
 ECLASS 9.0 27-44-01-06
 ECLASS 9.1 27-44-01-06
 ECLASS 10.0 27-44-01-06
 ECLASS 11.0 27-44-01-06
 ECLASS 12.0 27-44-01-06
 ECLASS 13.0 27-44-01-06
 ECLASS 14.0 27-44-01-06
 ECLASS 15.0 27-44-01-06
