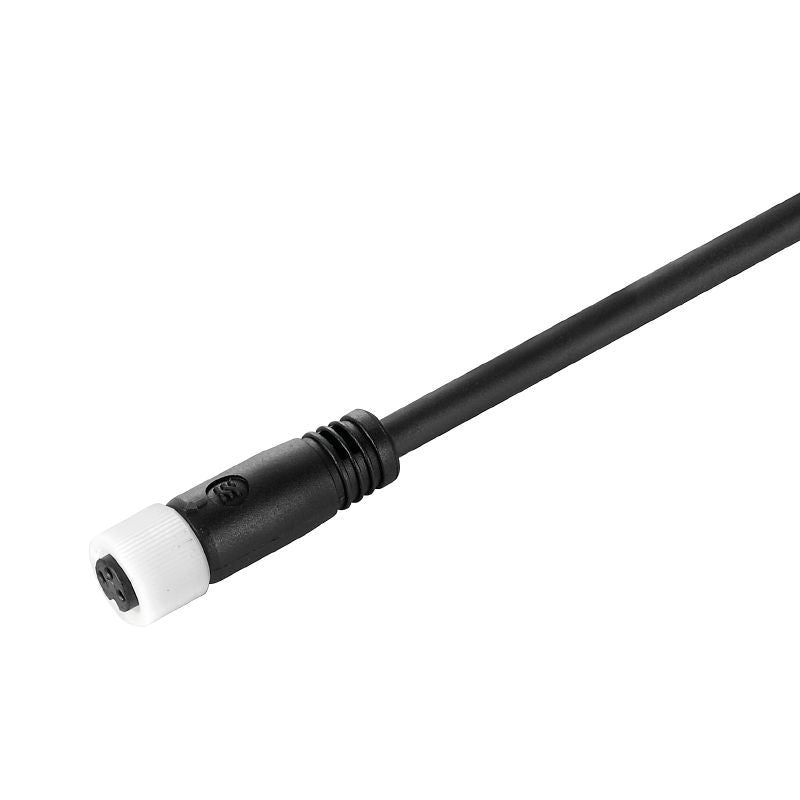

1382991000 - M8 Female Socket Sensor/Actuator Line, 10m Length, 4 Poles

1382991000 - M8 Female Socket Sensor/Actuator Line, 10m Length, 4 Poles

SKU: SKU: 1382991000

Variant:
  • 1382991000 - M8 Female Socket Sensor/Actuator Line, 10m Length, 4 Poles
Regular price Now $16.61
Regular price BEFORE   $0.00 Sale price Now $16.61
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile sensor/actuator line that boasts an M8 configuration with a length of 10 meters This design features a female socket with four poles and a straight connector at one end, offering easy integration without shielding or an integrated LED Crafted from durable PUR material, this product is also halogen-free, ensuring safe and reliable performance for a wide range of applications.

Features and Benefits:

    •Halogen-free material.

    •Hydrolysis and microbe resistant.

    •LABS-free construction.

    •Suitable for cable carriers.

    •A-coded connections.

Specifications:

 Cable length 10 m
 Core cross-section 0.25 mm²
 Number of poles 4
 Outside diameter 4.4 mm ± 0.2 mm
 Sheath material PUR
 Connection thread M8
 Nominal current 4 A
 Nominal voltage 30 V
 Protection degree IP65, IP66, IP67, IP68
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
