1382981000 - 10m M8 Sensor/Actuator Line, 3 Poles, Halogen-Free

1382981000 - 10m M8 Sensor/Actuator Line, 3 Poles, Halogen-Free

SKU: SKU: 1382981000

Select a Variant:
  • 1382981000 - 10m M8 Sensor/Actuator Line, 3 Poles, Halogen-Free
Qty:
Regular price Now $13.43   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $13.43 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

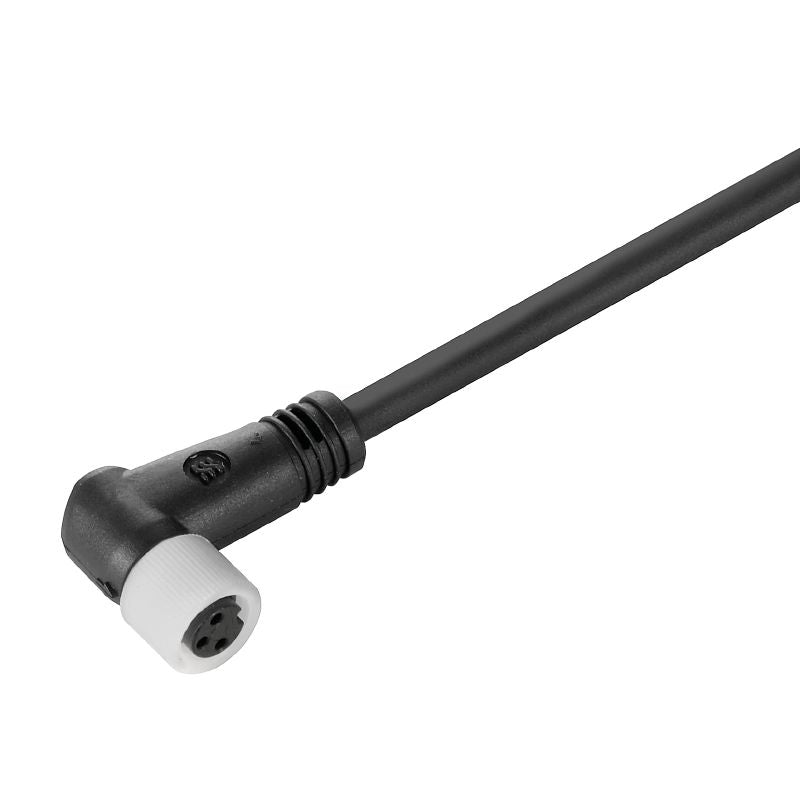

Discover efficiency with this 10-meter sensor/actuator cable featuring an M8 interface Designed with three poles, one end is left without a connector for versatile installations The cable is equipped with an angled socket, crafted from halogen-free PUR material for increased safety and performance Please note that this model does not come with shielding or LED indicators, making it a reliable choice for your needs.

Features and Benefits:

    •Approvals include ROHS conformity and E307231 certification.

    •Suitable for cable carriers.

    •Temperature range for moving applications is -25 to 80 °C.

    •Temperature range for stationary use is -40 to 80 °C.

    •Bending cycles rated at 12 million.

Specifications:

 Cable length 10 m
 Core cross-section 0.25 mm²
 Outside diameter 4.1 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Plugging cycles ≥ 100
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Insulation resistance 10^8 Ω
 Speed 5 m/s
 Connection thread M8
 Housing main material PUR
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Torsion resistance 360 °/m
 Length of torsion 1 m
