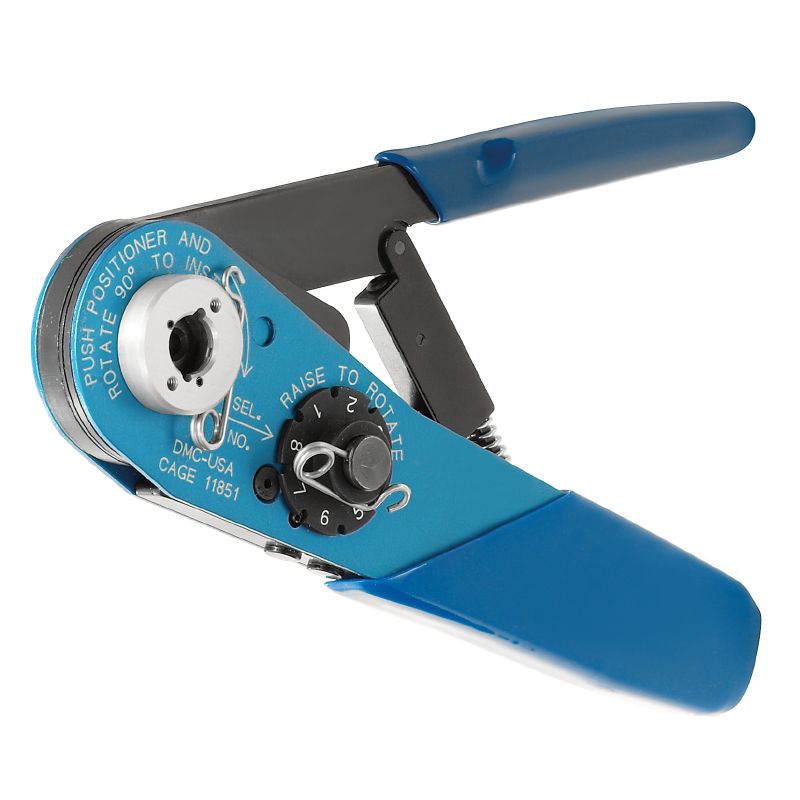

1381690000 - 4-Indent Crimp Tool for AWG 20 to 28

1381690000 - 4-Indent Crimp Tool for AWG 20 to 28

SKU: SKU: 1381690000 Download PDF

Variant:
  • 1381690000 - 4-Indent Crimp Tool for AWG 20 to 28
Regular price Now $1,899.18
Regular price BEFORE   $0.00 Sale price Now $1,899.18
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-TMCSK pressing tool, expertly crafted for 4-indent crimping This mechanical tool is straightforward to use, featuring a design that eliminates the need for interchangeable inserts It accommodates conductor sizes ranging from AWG 20 to AWG 28 with turned contacts, making it versatile for various applications The adjustable crimping range enhances its functionality, allowing for seamless operation across different AWG sizes in the specified range.

Features and Benefits:

    •Mechanical design without interchangeable inserts.

    •Turned contacts for reliable connections.

    •Adjustable crimping range for various conductor sizes.

    •Compliant with RoHS regulations.

Specifications:

 Length 178 mm
 Length (inches) 7.008 inch
 Net weight 406 g
 Conductor cross-section, max. AWG AWG 20
 Conductor cross-section, min. AWG AWG 28
 Crimping type/profile 4-indent crimp
 ETIM 6.0 EC000168
 ETIM 7.0 EC000168
 ETIM 8.0 EC000168
 ETIM 9.0 EC000168
 ETIM 10.0 EC000168
 ECLASS 9.0 21-04-38-11
 ECLASS 9.1 21-04-38-11
 ECLASS 10.0 21-04-38-11
 ECLASS 11.0 21-04-38-11
 ECLASS 12.0 21-04-38-11
 ECLASS 13.0 21-04-38-11
 ECLASS 14.0 21-04-38-11
 ECLASS 15.0 21-04-38-11
