1380590000 - M12 Field Attachable Connector, IP67, Gold-Plated Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

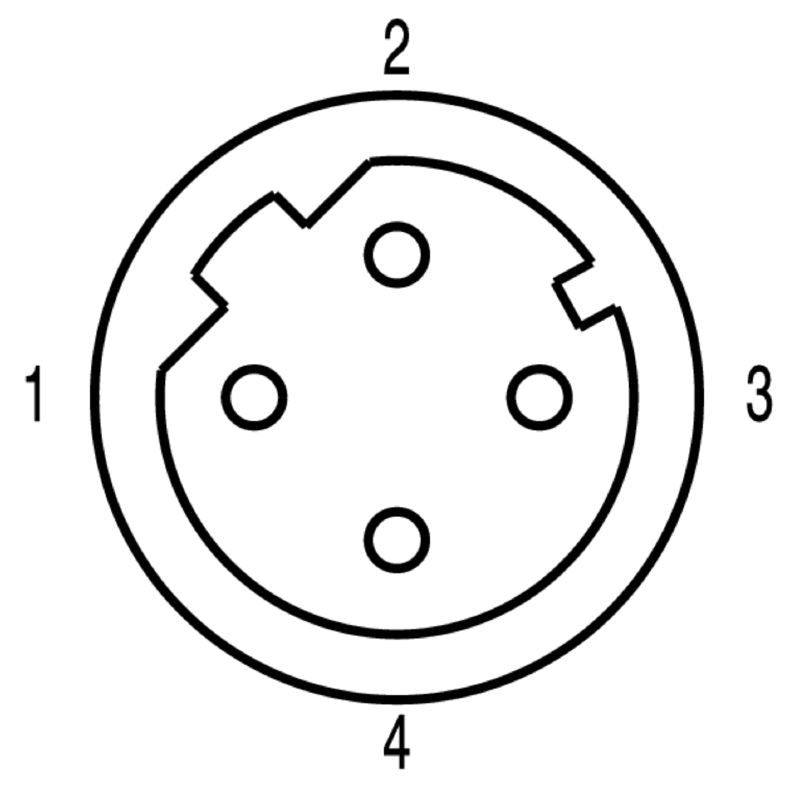

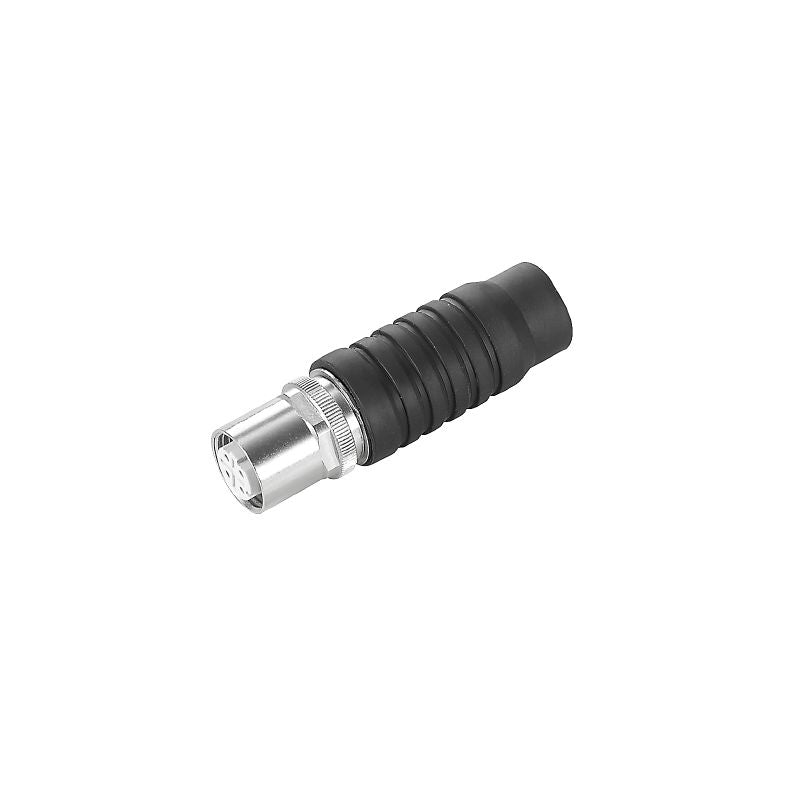

Introducing a versatile field attachable connector tailored for M12 applications This connector incorporates a thoughtful coding system and accommodates cable diameters ranging from 81 mm to a maximum of 85 mm The conductor cross-section varies from 034 mm² to 05 mm², ensuring a strong electrical connection Featuring gold-plated contacts and a female design, it is constructed from durable CuZn material.

With a nominal current rating of 4 A and voltage capabilities of up to 50 V, this connector is reliable even in demanding environments Boasting four poles and an IP67 protection rating, it guarantees performance under various conditions while supporting at least 200 plugging cycles.

Features and Benefits:

•Gold-plated contact surface.

•Crimp connection type.

•IP67 protection degree.

•Suitable for use with a cable diameter of 8.1 to 8.5 mm.

•Nominal current rating of 4 A.

•Nominal voltage rating of 50 V.

•Temperature range of housing from -40 to +85 °C.

Specifications:
