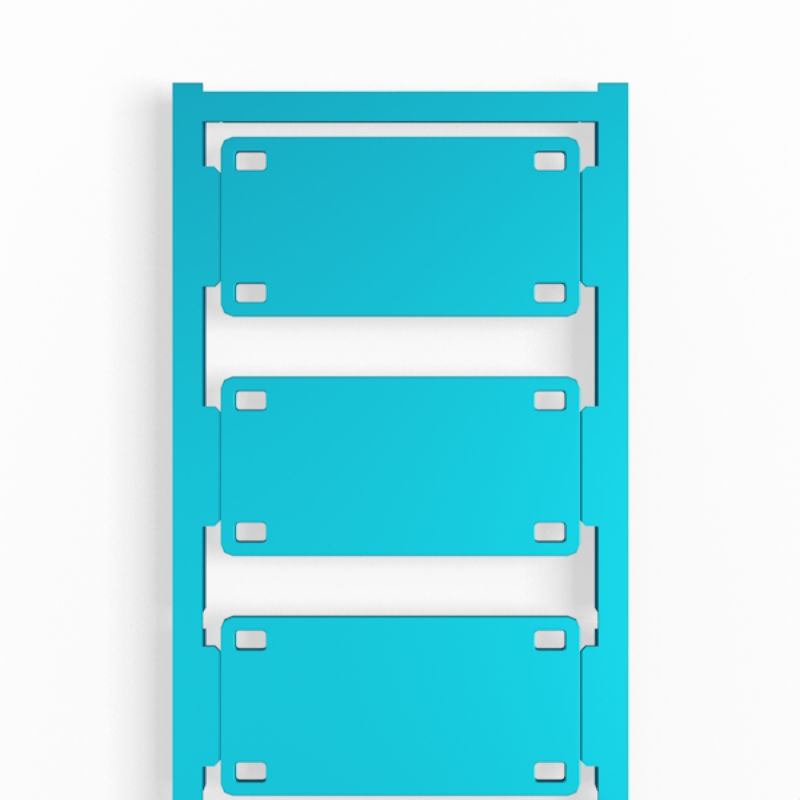

1369540000 - Blue 60x30mm Conductor Markers for 7-40mm Cables (Pack of 30)

1369540000 - Blue 60x30mm Conductor Markers for 7-40mm Cables (Pack of 30)

SKU: SKU: 1369540000 Download PDF

Variant:
  • 1369540000 - Blue 60x30mm Conductor Markers for 7-40mm Cables (Pack of 30)
Regular price Now $17.78
Regular price BEFORE   $0.00 Sale price Now $17.78
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SlimFix X series SFX 30/60 MC NE BL conductor and cable markers, expertly designed to accommodate conductors with an outer diameter between 7 mm and 40 mm These markers come in a striking blue color and measure 60 x 30 mm, making them easy to spot and use in various applications Each pack includes 30 units, ensuring you have plenty on hand for your wiring needs.

Features and Benefits:

    •Made of Polyamide 66.

    •Compliant with RoHS without exemptions.

    •Operating temperature ranges from -40 to 100 °C.

    •Halogen-free construction.

    •Installation can be performed using cable ties.

    •Compatible with PRINTJET CONNECT printer.

Specifications:

 Depth 1.2 mm
 Height 60 mm
 Width 30 mm
 Operating temperature range -40...100 °C
 Conductor cross-section, max. 500 mm²
 Conductor cross-section, min. 16 mm²
 Conductor O.D. 7 - 40 mm
 Cross-section for connected wire 16 - 500 mm²
 UL 94 flammability rating V-2
 Size of labelling field 45 x 30 mm
 Number of markers per combination 1 MultiCard = Conductor and cable markers
