1368780000 - M12 D-Sub Connector with 12 MBit/s Data Rate

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

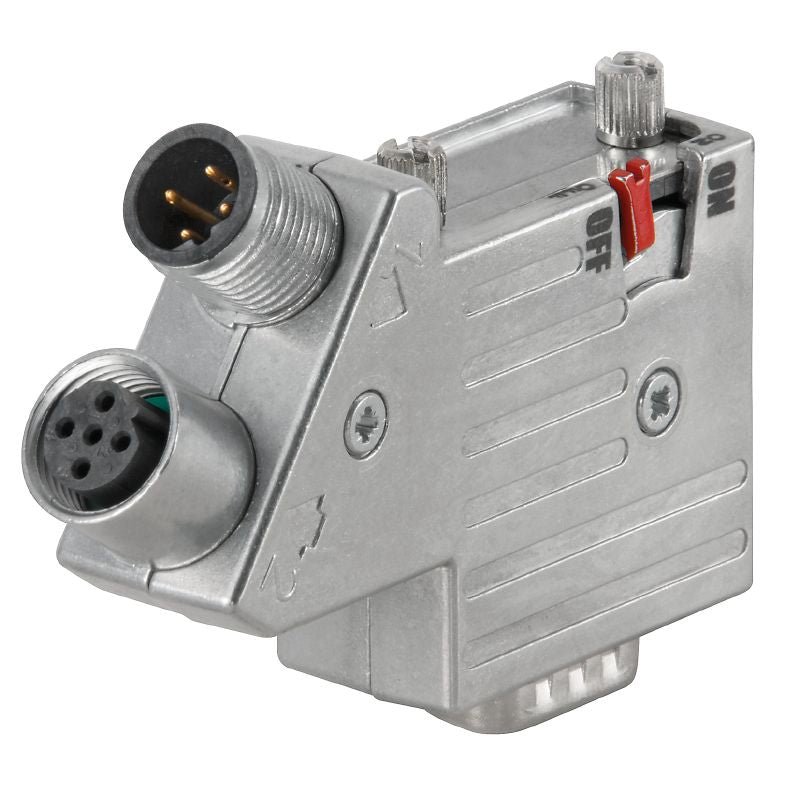

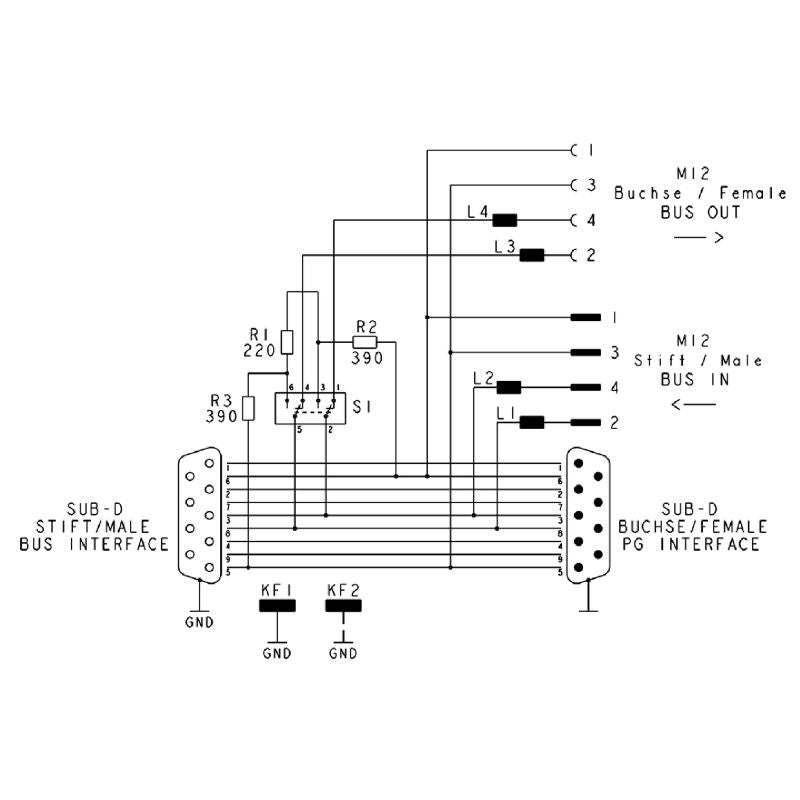

Introducing the PB-DP SUB-D M12 35 T connector, a reliable sub-D connection equipped with a 9-pole D-Sub bus interface This model features both male and female M12 B-coded connectors, with specific pin assignments at 2 and 4 Designed for high-performance, it supports data transfer rates of up to 12 MBit/s Crafted from durable ZnAl, it's built to withstand diverse environmental conditions, operating effectively in temperatures ranging from -20 to +70°C and capable of enduring up to 75% humidity at 25°C.

This connector adheres to RoHS standards and is engineered for longevity, offering over 200 plugging cycles, and comes with an optional terminating resistor for added versatility.

Features and Benefits:

•Compliant with RoHS exemption.

•IP30 protection degree.

•In accordance with PROFIBUS specification.

•Interlock with UNC4-40.

Specifications:
