1318760000 - Yellow Polyamide Cable Markers 21mm x 5.8mm for 3-3.7mm Cables (Pack of 256)

1318760000 - Yellow Polyamide Cable Markers 21mm x 5.8mm for 3-3.7mm Cables (Pack of 256)

SKU: 1318760000

Variant:
  • 1318760000 - Yellow Polyamide Cable Markers 21mm x 5.8mm for 3-3.7mm Cables (Pack of 256)
Now $44.09
BEFORE   $0.00 Now $44.09
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

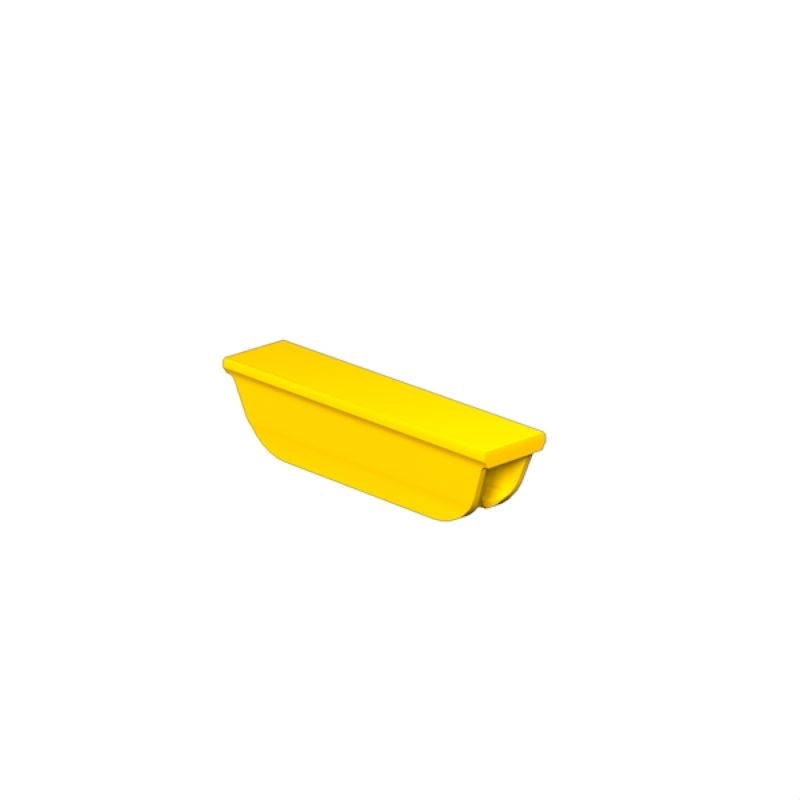

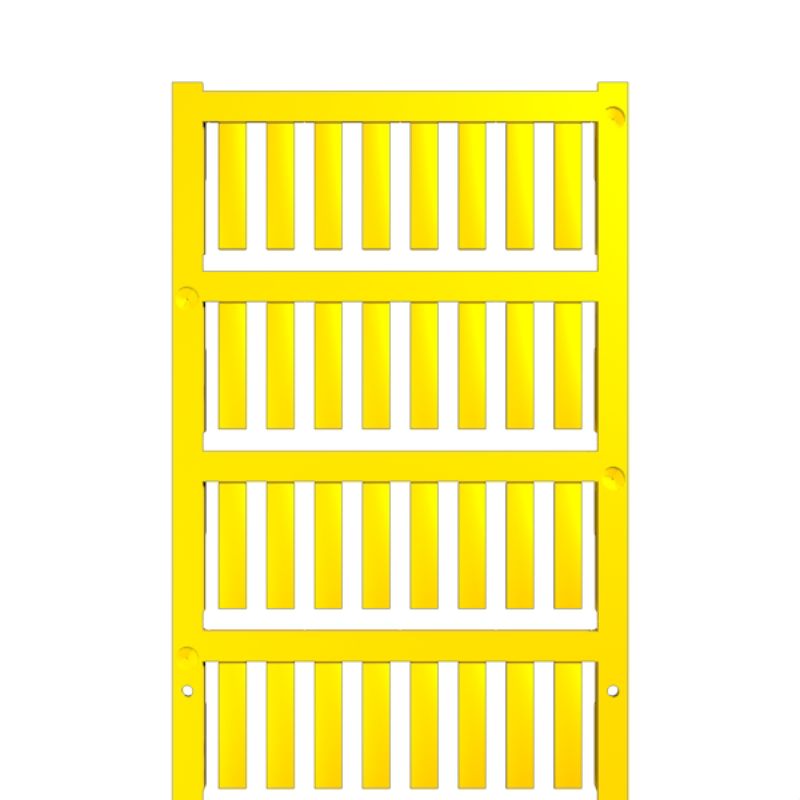

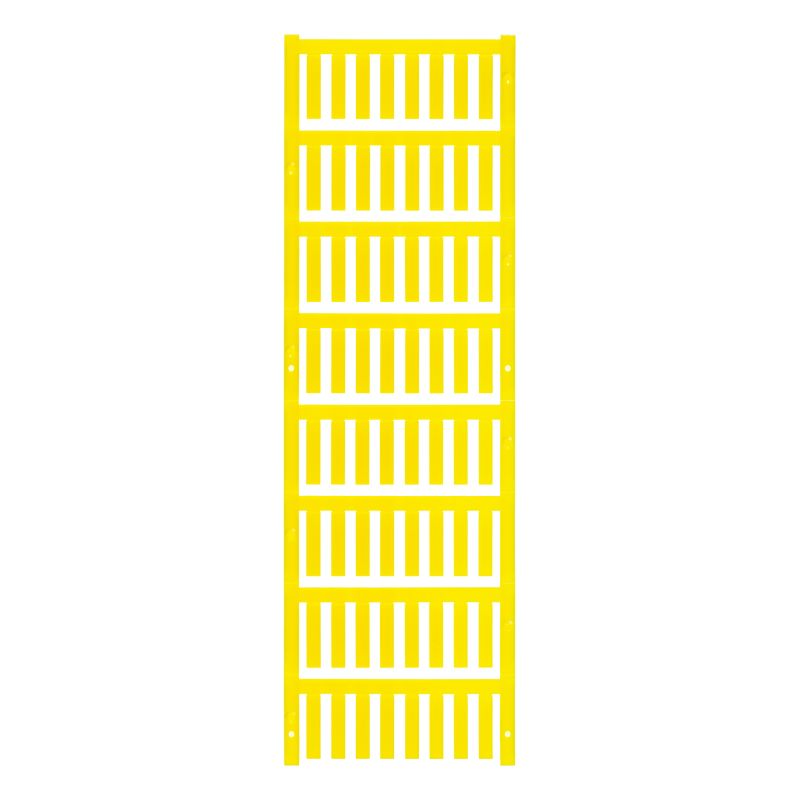

Introducing the SlimFix R conductor and cable markers, expertly crafted for precise marking on cables with outer diameters between 3 mm and 37 mm Each marker boasts dimensions of 21 mm tall and 58 mm wide, providing clear identification Finished in a vibrant yellow hue, these markers are constructed from durable polyamide 66 material, ensuring longevity With full compliance to RoHS standards, they represent a safe and environmentally-friendly choice for your marking needs.

Features and Benefits:

    •Conductor cross-section range from 1.5 mm² to 2.5 mm².

    •Operating temperature range between -40°C to 100°C.

    •Compliant with RoHS standards.

    •Printed characters are neutral.

    •Compatible with PRINTJET CONNECT.

    •Transportation.

    •Machinery.

Specifications:

 Operating temperature range (max) 100 °C
 Operating temperature range (min) -40 °C
 Dimensions (Height) 21 mm
 Dimensions (Width) 5.8 mm
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Height (inches) 0.827 inch
 Width (inches) 0.228 inch
 UL 94 flammability rating V-2
 Conductor O.D. (max) 3.7 mm
 Conductor O.D. (min) 3 mm
 Product Carbon Footprint 0.003 kg CO2 eq.
 ETIM Classifications {'6.0': 'EC001530', '7.0': 'EC001530', '8.0': 'EC001530', '9.0': 'EC001530', '10.0': 'EC001530'}
 ECLASS Classifications {'9.0': '27-40-04-01', '9.1': '27-40-04-01', '10.0': '27-40-04-01', '11.0': '27-28-11-02', '12.0': '27-28-11-02', '13.0': '27-28-11-02', '14.0': '27-28-11-02', '15.0': '27-28-11-02'}
