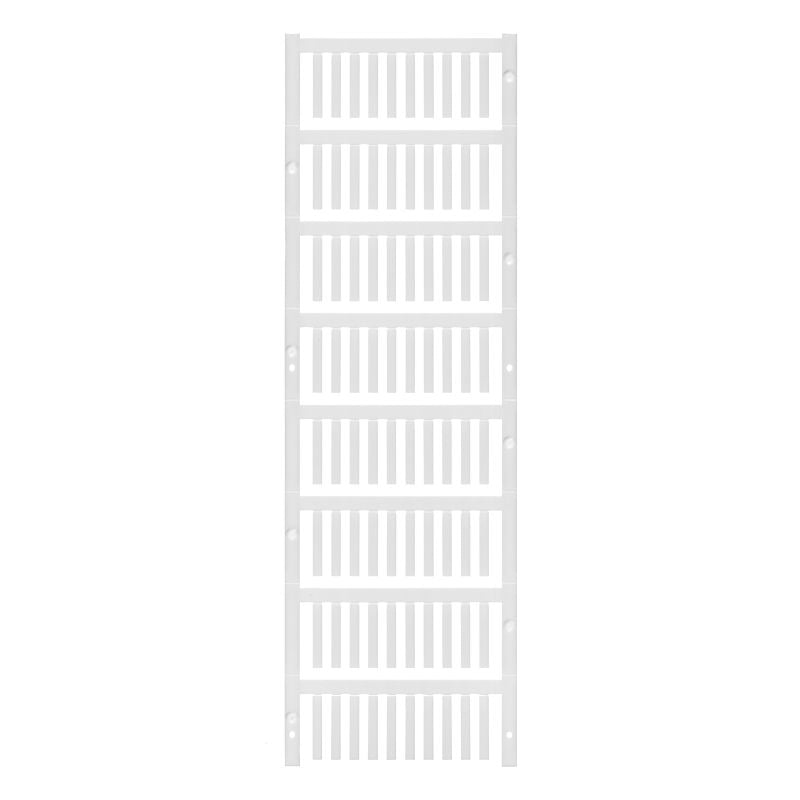

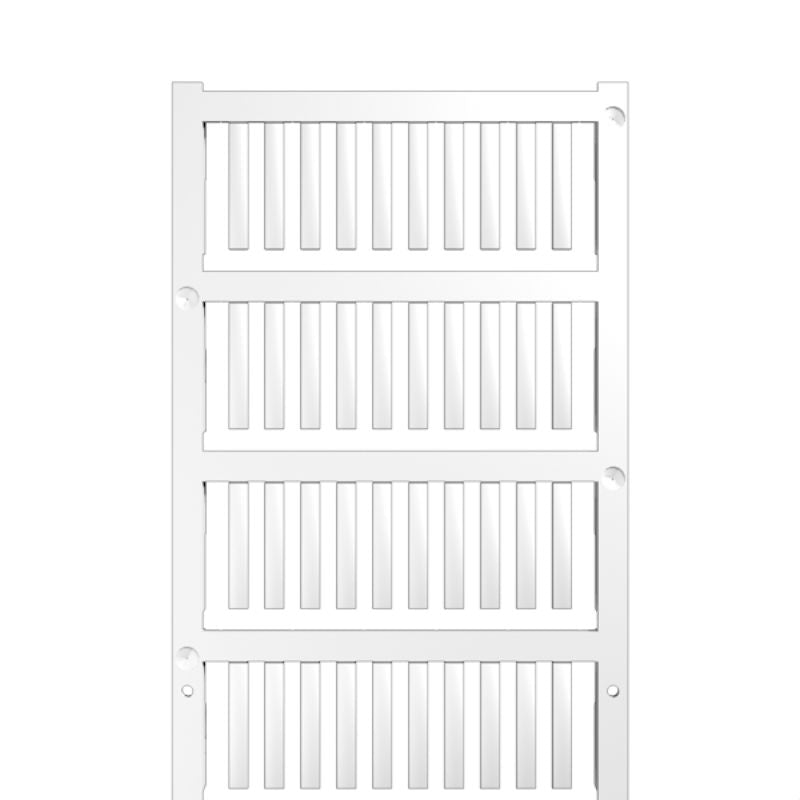

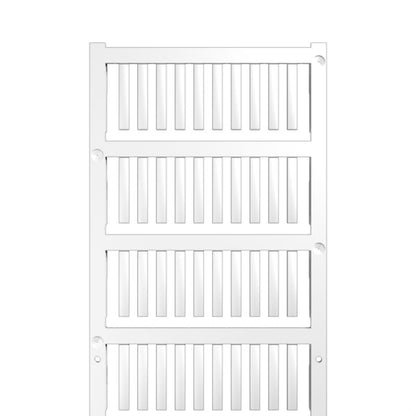

1318710000 - SlimFix R 21x5.8mm Labeling Clips for 1.7-2.1mm Cables (Pack of 400)

1318710000 - SlimFix R 21x5.8mm Labeling Clips for 1.7-2.1mm Cables (Pack of 400)

SKU: 1318710000 Download PDF

Variant:
  • 1318710000 - SlimFix R 21x5.8mm Labeling Clips for 1.7-2.1mm Cables (Pack of 400)
Now $61.60
BEFORE   $0.00 Now $61.60
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SlimFix R, the ideal solution for effectively labeling conductors and cables with diameters ranging from 17 to 21 mm This compact product measures 21 x 58 mm and adheres to RoHS standards, ensuring it is free from harmful substances (SVHCs) in concentrations exceeding 01 wt% Made from durable polyamide 66, the SlimFix R can withstand temperatures from -40 to 100 °C Each package includes 400 pieces neatly arranged on a MultiCard, featuring neutrally designed printed characters for versatile labeling applications.

Features and Benefits:

    •Operating temperature range of -40...100 °C.

    •No halogens included.

    •Designed for use in transportation and machinery industries.

    •Each MultiCard contains 1 MultiCard of markers.

    •Labeling for conduits and cables.

Specifications:

 Height 21 mm
 Height (inches) 0.827 inch
 Width 5.8 mm
 Width (inches) 0.228 inch
 Conductor cross-section, max 0.75 mm²
 Conductor cross-section, min 0.5 mm²
 Conductor O.D. 1.7 - 2.1 mm
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 UL 94 flammability rating V-2
 Product Carbon Footprint 0.002 kg CO2 eq.
 Basic material Polyamide 66
 GTIN (EAN) 4050118124538
 ETIM classifications {'ETIM 6.0': 'EC001530', 'ETIM 7.0': 'EC001530', 'ETIM 8.0': 'EC001530', 'ETIM 9.0': 'EC001530', 'ETIM 10.0': 'EC001530'}
 ECLASS classifications {'ECLASS 9.0': '27-40-04-01', 'ECLASS 9.1': '27-40-04-01', 'ECLASS 10.0': '27-40-04-01', 'ECLASS 11.0': '27-28-11-02', 'ECLASS 12.0': '27-28-11-02', 'ECLASS 13.0': '27-28-11-02', 'ECLASS 14.0': '27-28-11-02', 'ECLASS 15.0': '27-28-11-02'}
