1296730000 - Durable 12-Pole Crimp Connector, 8A, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-M23-BE-12-G connector, expertly crafted for plug-in sensor and actuator tasks, while adhering to RoHS guidelines This connector features a female contact mechanism with twelve poles, making it ideal for crimp connections It supports a nominal current of 8 A and a voltage of 200 V, ensuring reliable performance Constructed from robust thermoplastic materials, including polyamide PA 6 and PBT, this connector is not only durable but also designed for longevity with the ability to withstand over 1000 plug-in cycles.

Weighing in at just 5 g, it's a lightweight and efficient choice for your connectivity needs.

Features and Benefits:

•RoHS compliant without exemption.

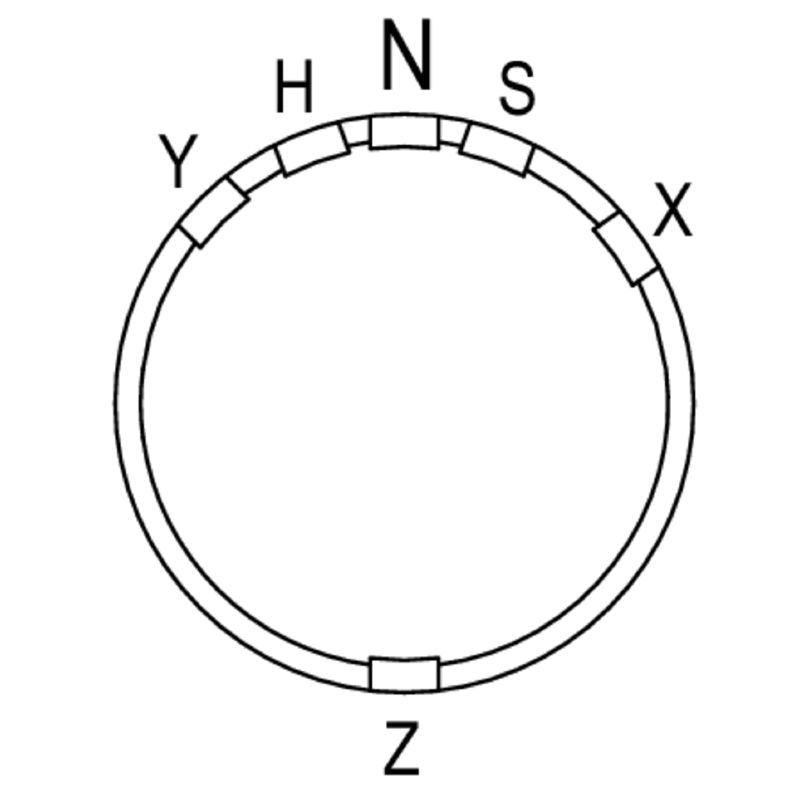

•Integrated with coding options for M23 signal inserts including H-coded, N-coded, S-coded, X-coded, Y-coded, and Z-coded.

•Pollution severity rating of 3.

Specifications:
