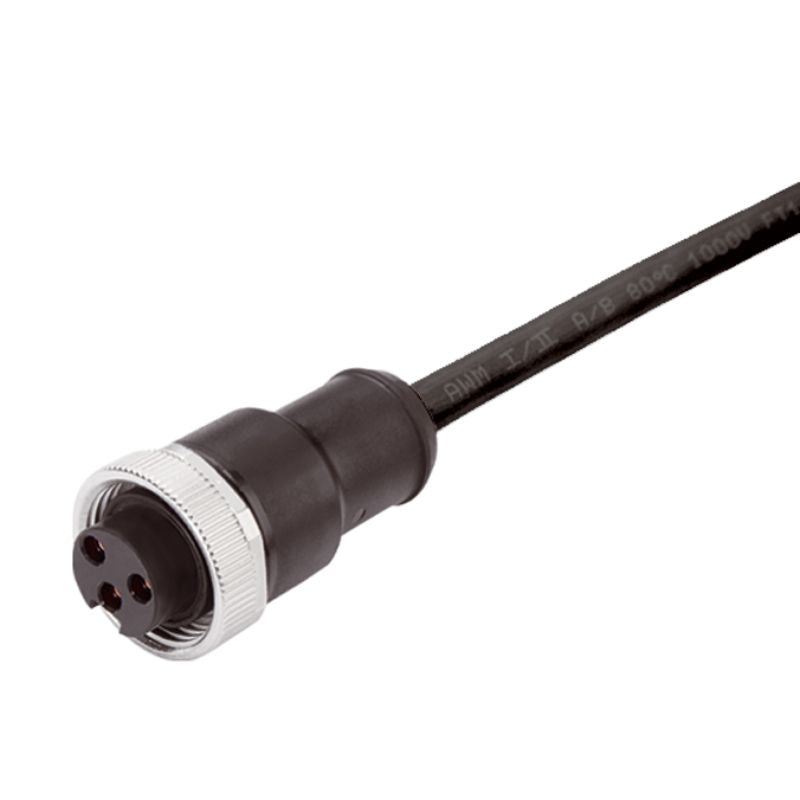

1292191600 - 16m PUR Sensor/Actuator Line, 7/8" Diameter, 5 Poles

1292191600 - 16m PUR Sensor/Actuator Line, 7/8" Diameter, 5 Poles

SKU: SKU: 1292191600

Variant:
  • 1292191600 - 16m PUR Sensor/Actuator Line, 7/8" Diameter, 5 Poles
Regular price Now $123.39
Regular price BEFORE   $0.00 Sale price Now $123.39
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable sensor/actuator line featuring a 7/8 inch diameter and designed with 5 poles (including 4 plus PE) This robust cable extends 16 meters in length and is built without shielding or LED functionality Crafted from halogen-free PUR material, it ensures both safety and performance for your needs.

Features and Benefits:

    •RoHS compliant.

    •Weight of 1000 g.

    •Suitable for cable carriers.

    •Configured cable length not available.

    •Resistant to welding beads: No.

Specifications:

 Cable length 16 m
 Number of poles 5 (4 + PE)
 Core cross-section 1.5 mm²
 Outer diameter 8.7 mm ± 0.2 mm
 Temperature range (moving) -20 to 80 °C
 Temperature range (stationary) -50 to 80 °C
 Insulation material TPM
 Nominal current 9 A
 Nominal voltage 300 V
 Protection degree IP68
 Weight 1,000 g
