1292150150 - 1.5m PUR Sensor/Actuator Line with 4 Poles

1292150150 - 1.5m PUR Sensor/Actuator Line with 4 Poles

SKU: SKU: 1292150150

Variant:
  • 1292150150 - 1.5m PUR Sensor/Actuator Line with 4 Poles
Regular price Now $27.81
Regular price BEFORE   $0.00 Sale price Now $27.81
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

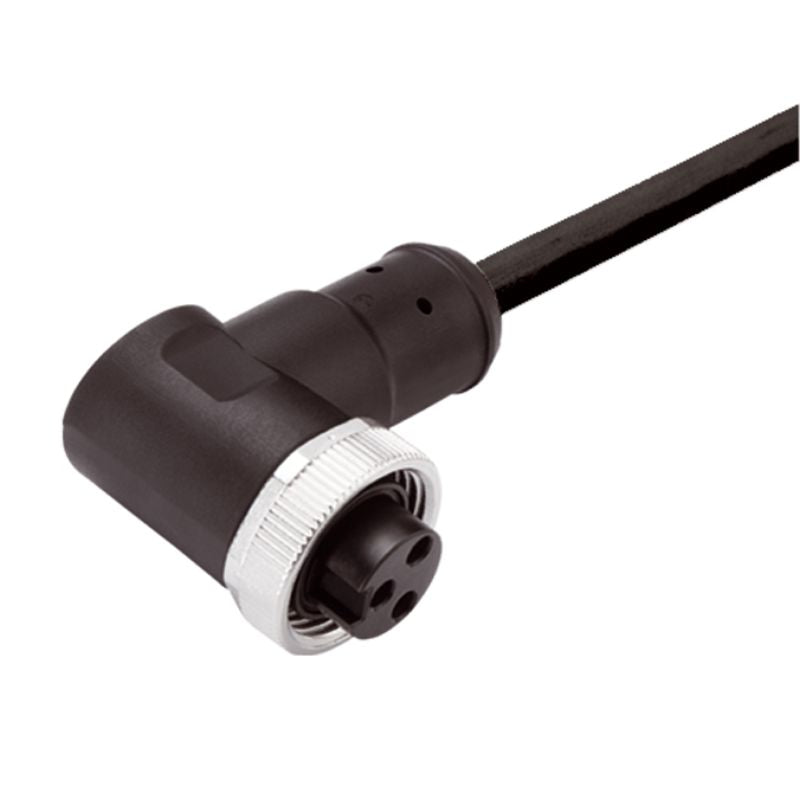

Discover the versatility of this 15-meter sensor/actuator cable, specially crafted with an angled socket for ease of connection Designed without a connector at one end, it features four poles, including three signal poles and a protective earth (PE) Built with a durable PUR sheath material, this cable is UL certified under certificate number E307231 and meets RoHS standards, ensuring safety and compliance for your projects.

Features and Benefits:

    •Angled socket design.

    •No connector on one end.

    •RoHS compliant.

    •UL certified.

    •Made with PUR sheath material.

Specifications:

 Cable length 1.5 m

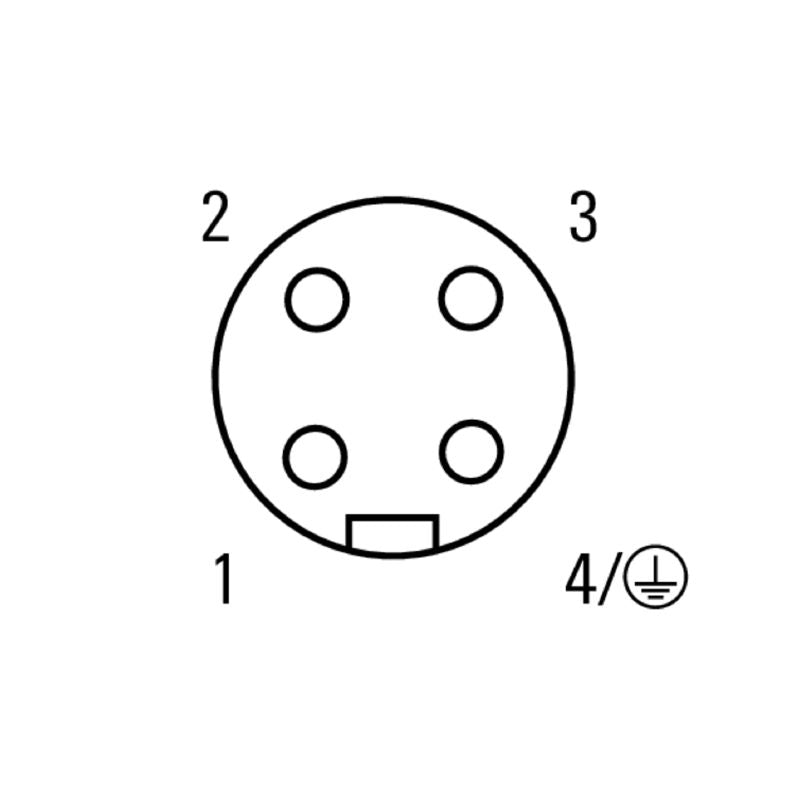

 Number of poles 4 (3 + PE)
 Outer diameter 8 mm ± 0.2 mm
 Nominal current 9 A
 Nominal voltage 300 V
 Protection degree IP68
 Temperature range, moving -20...80 °C
 Temperature range, stationary -50...80 °C
 Sheath material PUR
 Insulation resistance 10^8 Ω
 Housing main material PUR
