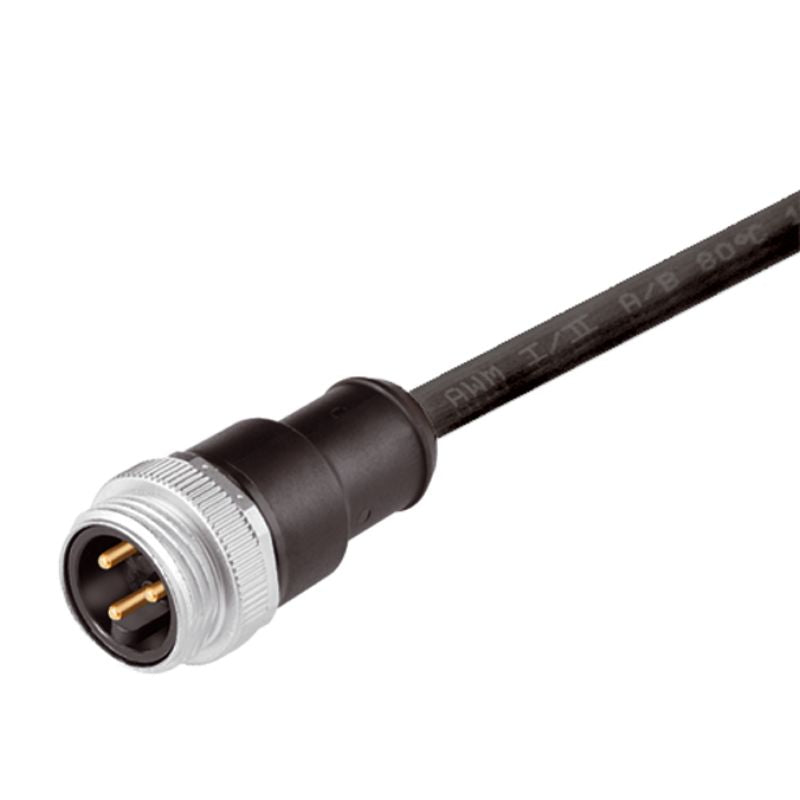

1292080300 - 5m PUR Sensor/Actuator Line, 7/8" Connection, 3 Poles

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your connection options with this versatile sensor/actuator line Designed with a 7/8 inch connection at one end, this cable features three essential poles that include two signal conductors along with a protective earth Measuring a generous 5 meters in length, it is configured with a straight pin arrangement The cable is constructed from durable PUR sheath material, ensuring compliance with RoHS standards.

Please note, it is not shielded and does not incorporate an LED Perfect for various applications, this line offers reliable functionality without the extra bulk.

Features and Benefits:

•Net weight of 290 grams.

•Cable is compliant with RoHS and features lead as a REACH SVHC.

•Number of bending cycles rated at 5 million.

•Minimum bending radius is 7.5 times the cable diameter.

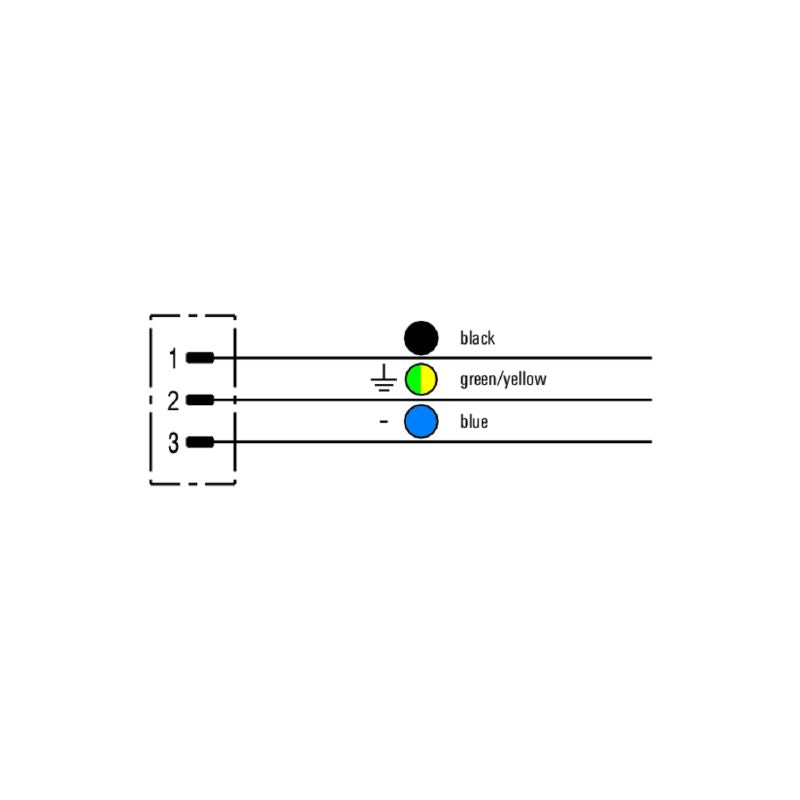

•Features a blue, brown, and green/yellow color coding.

•Core cross-section is 1.5 mm².

•Temperature range for moving application is -20 to 80 °C.

•Temperature range for stationary use is -50 to 80 °C.

•Suitability for cable carriers.

•Plug left is rated IP68 with male contact and is unshielded.

Specifications:
