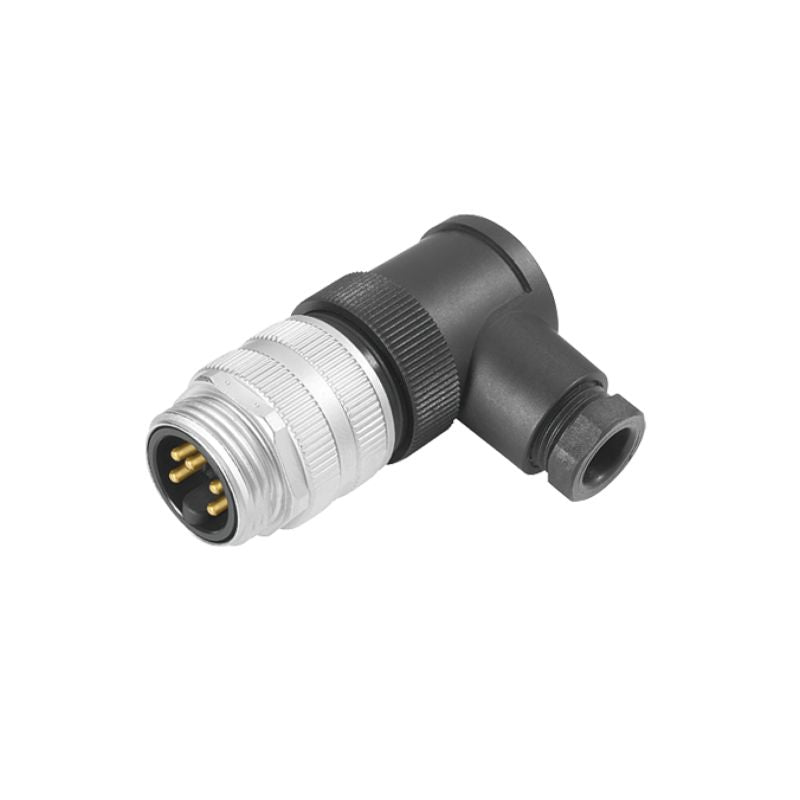

1292040000 - 7/8" Field Attachable Connector, IP67 Rated, Gold-Plated

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience dependable connectivity with the SAISW-4/11-7/8 field attachable connector, engineered for durability This model is compatible with cable diameters between 8 mm and 10 mm and features a secure 7/8" male contact connection Crafted from PBT, the housing is built to endure tough conditions With a gold-plated contact surface, it can withstand up to 50 plugging cycles, ensuring long-lasting use.

Designed for a temperature tolerance from -40 to +85 degrees Celsius, it boasts an IP67 protection rating, making it an excellent choice for a variety of challenging applications.

Features and Benefits:

•Cable gland rated PG 11.

•No shield connection.

•Insulation resistance of 10^8 Ω.

•Can handle nominal current of 9 A.

•Conforms to RoHS compliance standards.

•Constructed with diecast zinc threaded ring material.

Specifications:
