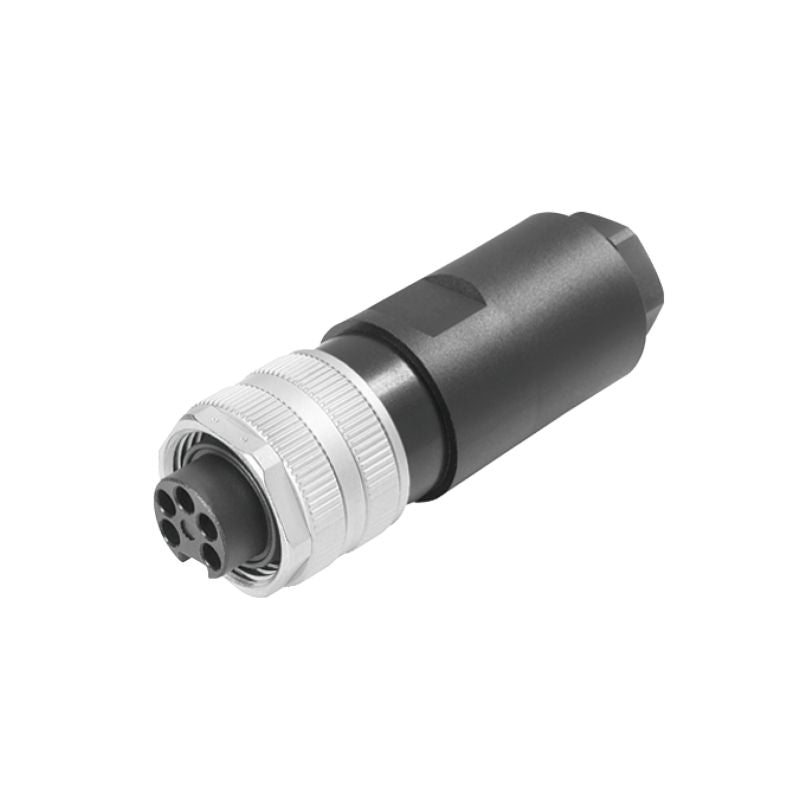

1292010000 - IP67 7/8" Field Attachable Connector, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile 7/8" field attachable connector, perfect for a broad range of applications Adhering to RoHS standards, this component is also listed under UL File Number E307231 It accommodates cable diameters ranging from 8 mm to 10 mm With a conductor cross-section capability of 05 mm² to a maximum of 15 mm², it is designed for efficient connectivity The connector features a reliable female contact made from CuZn with a gold-plated finish, ensuring optimal performance.

Constructed from durable PBT material, it offers an IP67 protection rating, making it suitable for challenging environments This connector is compatible with a nominal current of 9 A and a nominal voltage of 300 V, offering 9 A rated current in 4- and 5-pole configurations and 12 A in 3-pole setups.

Features and Benefits:

•RoHS compliant with exemption.

•IP67 protection degree for environmental robustness.

•Gold-plated contact surface for enhanced conductivity.

•Screw connection type for reliable connections.

•Temperature range of housing from -40 to +85 °C.

Specifications:
