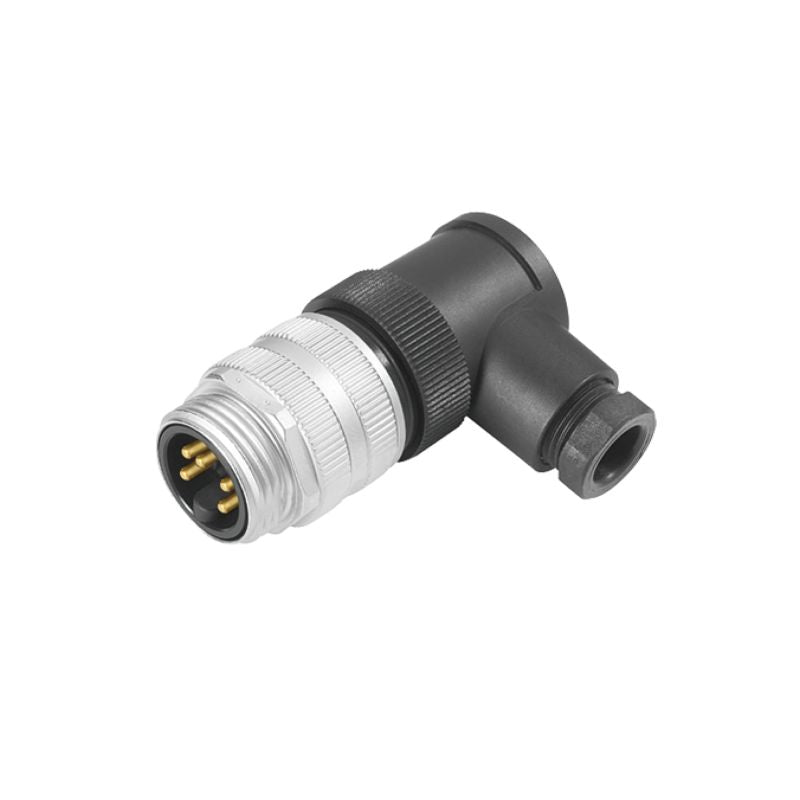

1291980000 - 7/8" Field Attachable Connector, PBT, IP67, Durable Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile field-attachable connector featuring a 7/8" connection type This connector is compliant with RoHS standards and bears the UL certification number E307231 Designed to accommodate cable diameters ranging from 6 mm to 8 mm, it supports various cable types with a maximum conductor cross-section of 15 mm² and a minimum of 05 mm² It can handle a rated current of 9 A for 4- and 5-pole configurations, and 12 A for 3-pole setups, boasting an impressive insulation resistance of 10^8 Ω.

Crafted from durable PBT housing, the connector also features gold-plated CuZn contacts for optimal conductivity With an operational temperature range of -40 to +85 °C and a high protection rating of IP67, this connector is built for reliability Additionally, its plug contacts are rated for at least 50 insertion cycles, ensuring long-lasting performance across multiple applications.

Features and Benefits:

•Field attachable design.

•High protection degree of IP67.

•Rated for 9 A (4- and 5-pole) and 12 A (3-pole).

•Gold-plated contact surface for reliable conductivity.

•Temperature range from -40 to +85 °C.

Specifications:
