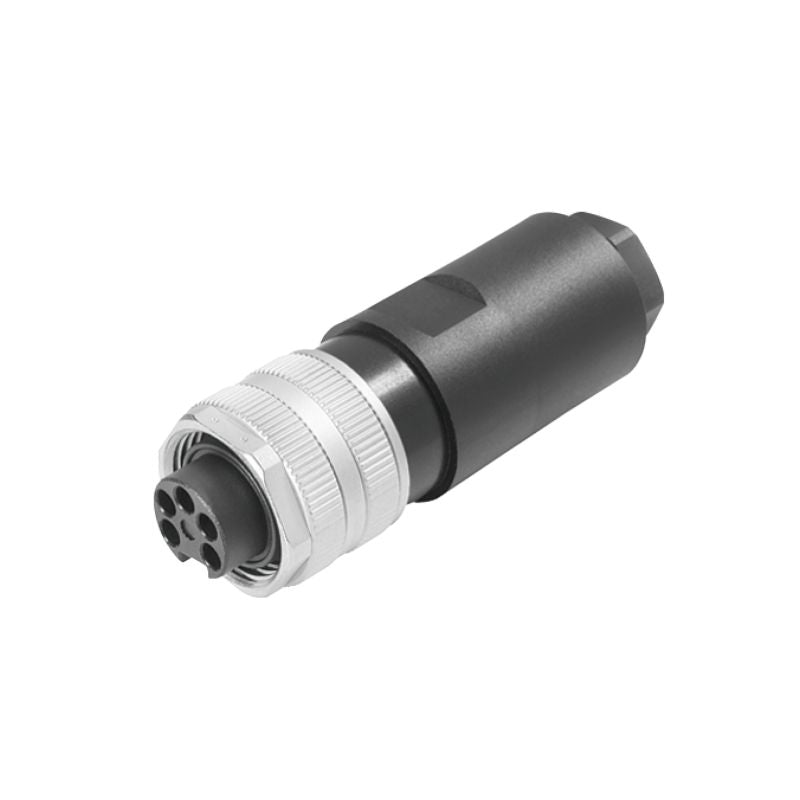

1291920000 - 7/8" Field-Mountable Connector with Gold-Plated Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIB-3/11-7/8 field-mountable connector, expertly engineered to accommodate cable diameters ranging from 8 mm to 10 mm Featuring a reliable screw connection with a 7/8 inch threaded design, this connector offers exceptional durability thanks to its female contacts made from CuZn and gold-plated for enhanced longevity Crafted from robust PBT housing material, it supports a maximum rated current of 12 A across three poles.

With an impressive insulation resistance of 10^8 Ω, this connector is suitable for applications requiring a standard rated voltage of 300 V and can withstand impulse voltages up to 4,000 V Additionally, it meets RoHS standards and adheres to other environmental regulations, ensuring safe usage.

Features and Benefits:

•Female contact design.

•Gold-plated contact surface.

•IP67 protection degree for dust and water resistance.

•Temperature range of -40 to +85 °C.

•Plugging cycles rated at a minimum of 50.

Specifications:
