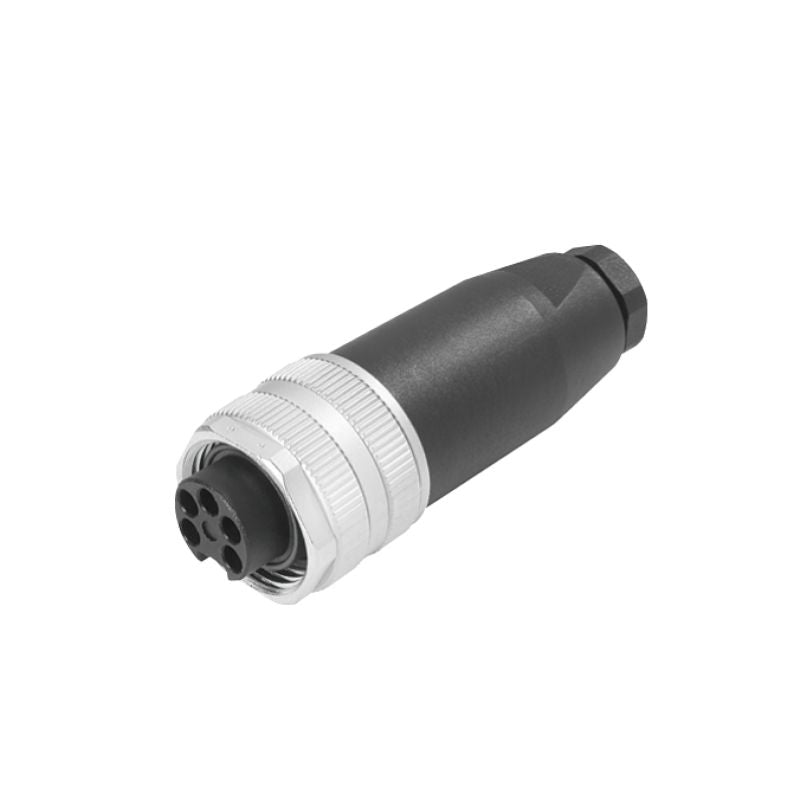

1291910000 - RoHS Compliant 7/8" Connector with PG 9 Gland

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of the SAIB-3/9-7/8 field attachable connector, designed for optimal performance Weighing in at just 45 grams, this 7/8" connector is RoHS compliant and certified with a UL File Number, ensuring adherence to environmental standards It accommodates cable diameters from 6 mm to 8 mm using a PG 9 cable gland and supports conductor cross-sections from 05 mm² to 15 mm² Crafted with a female gender contact from CuZn and featuring a gold-plated surface, this connector offers excellent conductivity.

Its robust housing made of PBT material ensures durability, while it can handle nominal currents of up to 12 A and voltages of 300 V Built to withstand a wide range of environmental conditions, it operates effectively in temperatures from -40 °C to +85 °C and is rated with an IP67 protection degree, making it suitable for various applications.

Features and Benefits:

•RoHS compliant with exemption.

•Connection thread of 7/8".

•Screw connection type.

•Capable of at least 50 plugging cycles.

•Rated for a pollution severity of 3.

Specifications:
