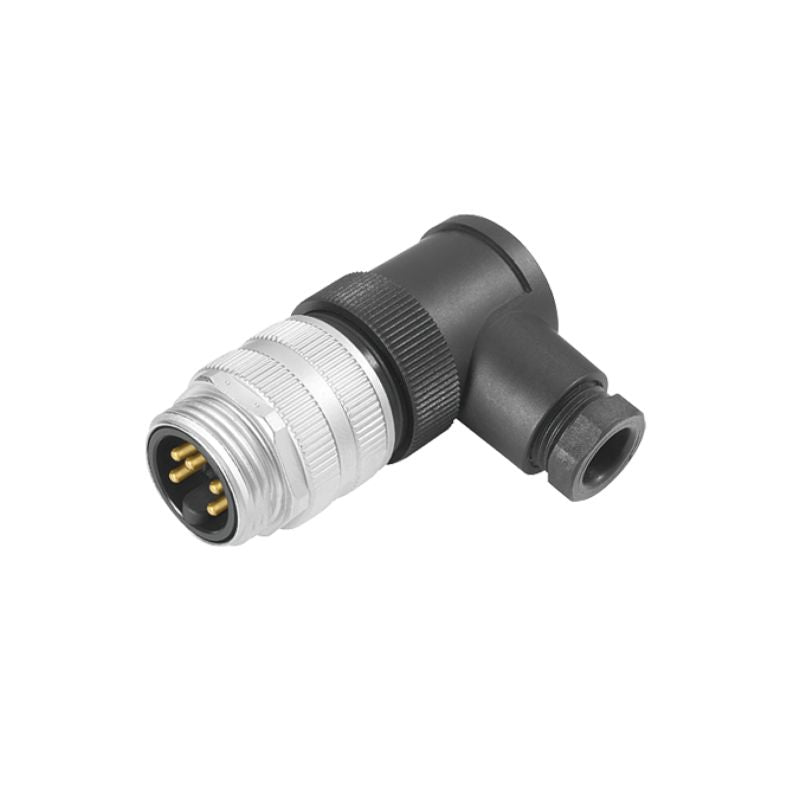

1291900000 - 7/8" Field Attachable Connector, IP67, 12A, CuZn Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile field-connectable connector crafted specifically for 7/8" cables This product adheres to ROHS standards, bearing the certification number E307231 It accommodates cable diameters ranging from 8 mm to 10 mm, ensuring a secure fit With a robust current rating of 12 A and a voltage capacity of 300 V, this connector is equipped with three poles and features a male gender contact made of CuZn with a gold-plated finish for optimal conductivity.

The housing is made from high-quality PBT and boasts an impressive IP67 protection rating, making it resistant to dust and water immersion Designed to withstand a considerable number of mating cycles, it can endure a minimum of 50 cycles Additional specifications include an insulation resistance of 10^8 Ω, making it reliable and safe, even in extreme conditions with a temperature range of -40 to +85 °C.

This connector is ideal for ensuring robust and reliable connections in various applications.

Features and Benefits:

•ROHS compliant.

•Gold-plated contact surface.

•IP67 rated protection degree.

•Environmentally compliant against lead and other substances.

•Screw connection type.

Specifications:
