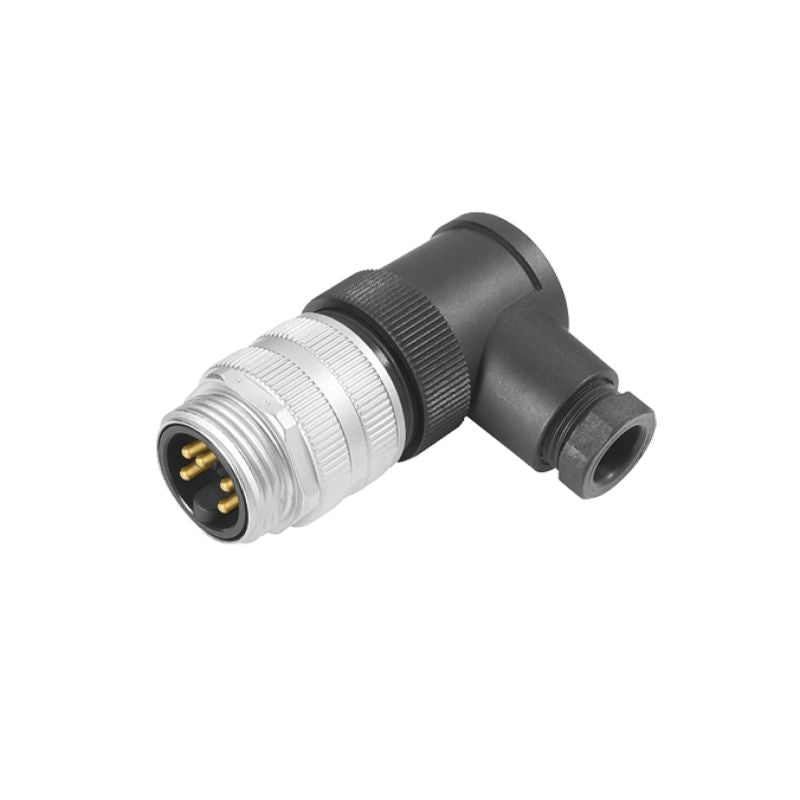

1291890000 - IP67 Field Attachable Connector, 6-8mm, Gold-Plated Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAISW-3/9-7/8 field attachable connector, expertly crafted for cables ranging from 6 mm to 8 mm in diameter Featuring durable male contacts made from gold-plated CuZn material, this connector is housed in robust PBT With a maximum current rating of 12 A and a voltage capacity of 300 V, it demonstrates impressive electrical performance, backed by a rated impulse voltage of 4,000 V Additionally, this connector is built to last, boasting a minimum lifespan of 50 plugging cycles and meeting RoHS compliance standards.

With an IP67 protection rating, it effectively resists dust and water, making it a reliable choice for various applications The design includes three poles and supports screw connections for secure and efficient operation.

Features and Benefits:

•Gold-plated contact surface.

•Protection degree IP67.

•Temperature range of housing from -40 to +85 °C.

•Complies with RoHS regulations.

Specifications:
