1279450500 - 5m Durable PUR M12 Connecting Line with 8 Poles

1279450500 - 5m Durable PUR M12 Connecting Line with 8 Poles

SKU: SKU: 1279450500 Download PDF

Variant:
  • 1279450500 - 5m Durable PUR M12 Connecting Line with 8 Poles
Regular price Now $39.68
Regular price BEFORE   $0.00 Sale price Now $39.68
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable 5-meter connecting cable specifically designed for the sensor/actuator series This cable is equipped with M12 connectors on each end, featuring 8 poles for seamless direct connections Built with a robust unshielded design, it ensures effective performance without any LED elements The sheath is crafted from durable PUR material, guaranteeing long-lasting use, and contains no halogens for a safer choice in construction.

Features and Benefits:

    •Unshielded connecting line.

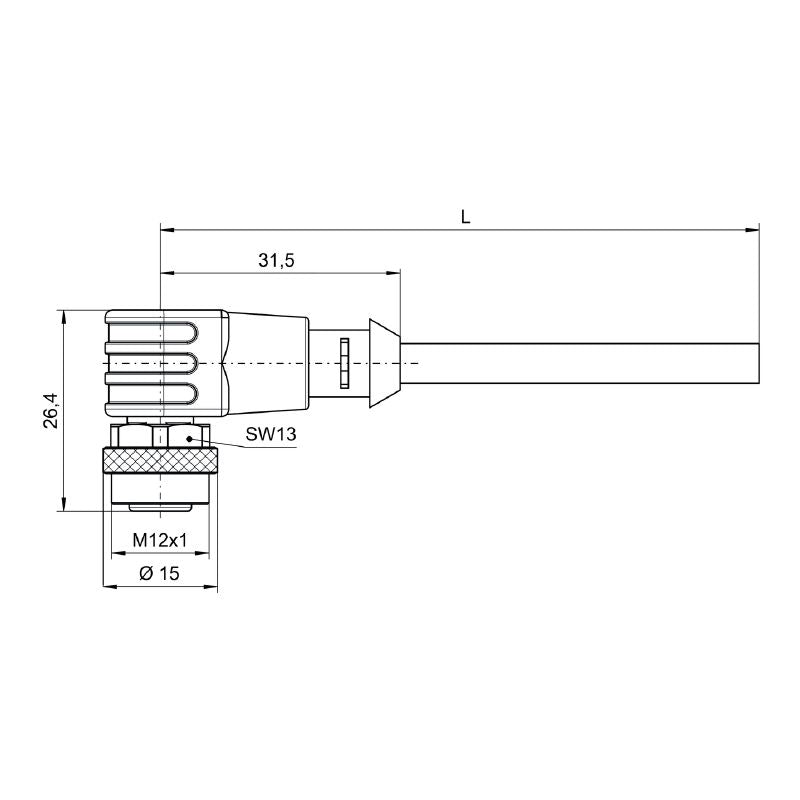

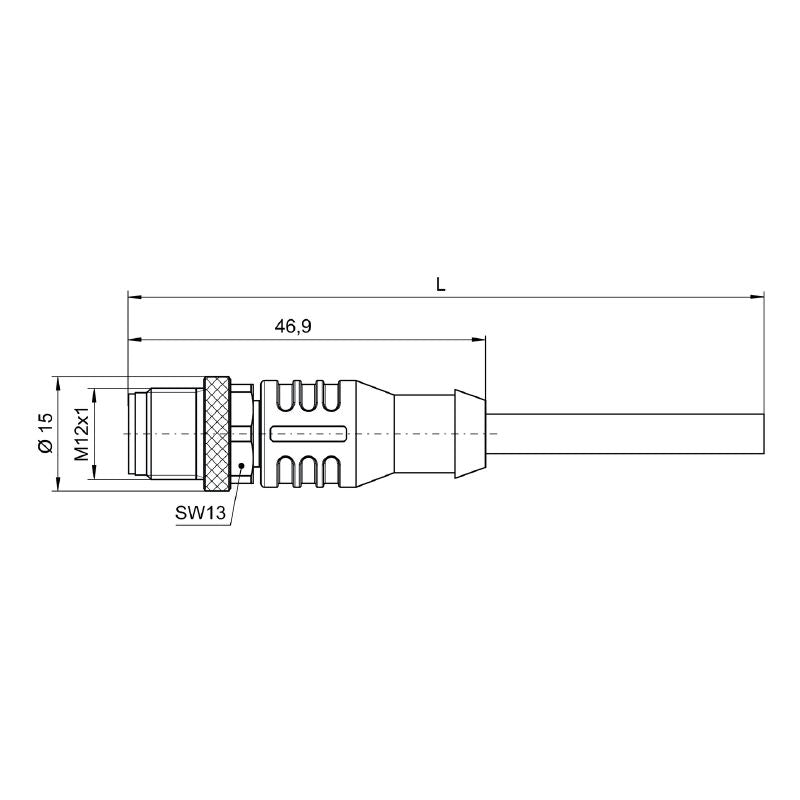

    •M12 connectors, pin, straight-socket, 90 degrees.

    •No LED feature.

    •Sheath material is PUR and contains no halogens.

    •Configurability for cable length.

Specifications:

 Cable length 5 m

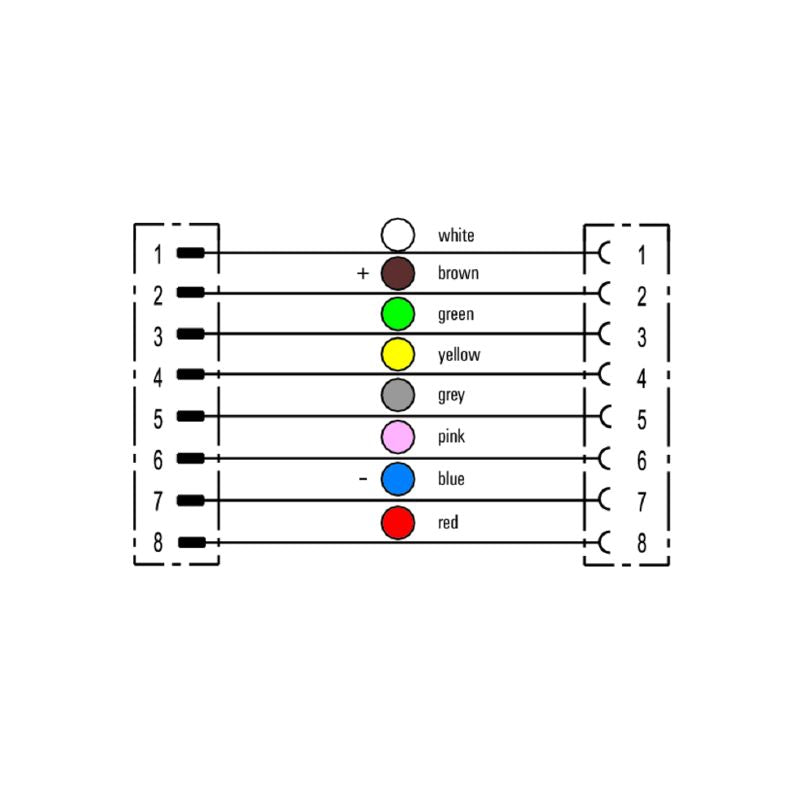

 Number of poles 8
 Outside diameter 5.9 mm ± 0.2 mm
 Core cross-section 0.25 mm²
 Nominal current 2 A
 Nominal voltage 30 V
 Bending cycles 1 million
 Protection degree IP67 when screwed in, IP69, IP65, IP66
 Shock and vibration proof according to Section B
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
