1264180000 - M12 180° D-Sub Connector with Zinc-Aluminum Housing

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

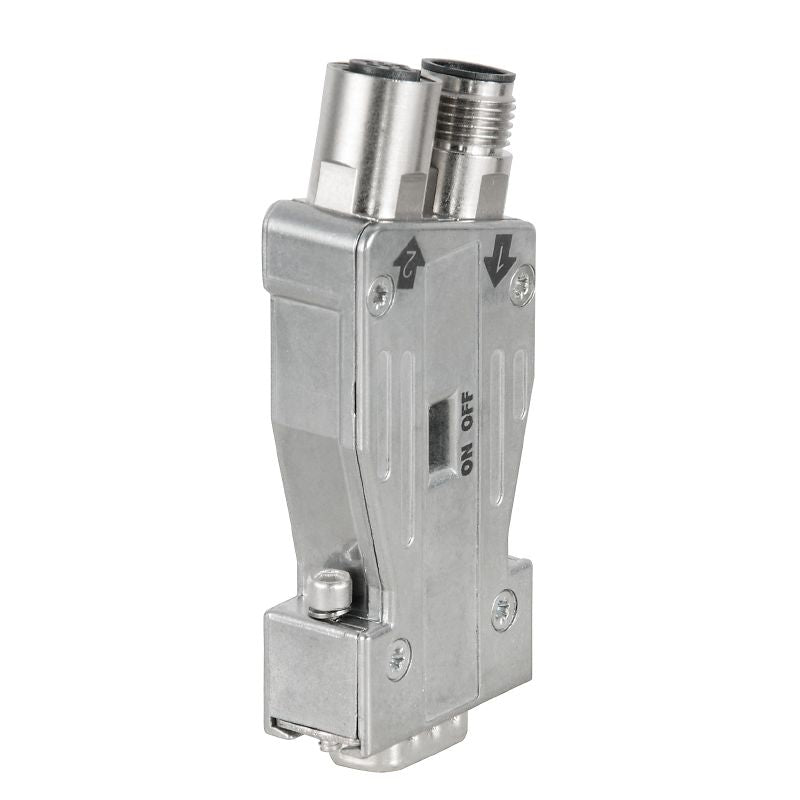

Introducing the PB-DP SUB-D M12 180 connector, a robust D-Sub 9-pole interface equipped with both M12 B-coded male and female connectors This connector facilitates impressive data transmission speeds of up to 12 MBit/s and features a durable zinc-aluminum housing With a maximum humidity tolerance of 75% at +25°C, it guarantees reliability in varying conditions and is fully compliant with RoHS standards.

Designed with a convenient 180° outgoing elbow and adhering to the specifications for PROFIBUS plug-in connectors and pin assignments, this component ensures a secure connection every time Capable of withstanding over 200 plugging cycles, it operates efficiently within a temperature range of -20°C to +70°C, making it an ideal choice for diverse applications.

Features and Benefits:

•RoHS compliant.

•Interlock with UNC4-40.

•Maximum humidity of 75% at +25°C, non-condensing.

•Suitable for PROFIBUS specification plug-in connectors and pin assignments.

•Supports over 200 plugging cycles.

Specifications:
