1224440000 - 19-Pole Gold-Plated Sensor Connector, 8A, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-M23-BE-19-F-PE connector, a reliable choice for sensor and actuator applications With its 19-pole arrangement, this robust connector features contacts made from a copper-zinc alloy, all coated with gold to ensure superior conductivity and longevity It meets strict RoHS compliance, adhering to environmental safety guidelines Able to handle a maximum current of 8A and a nominal voltage of 100V, it accommodates wire cross-sections ranging from 0.

08mm² to 15mm² Designed for durability, this connector can withstand over 1000 plugging cycles, assuring you of dependable performance for years to come.

Features and Benefits:

•RoHS compliant.

•Gold-plated contact surfaces.

•Thermoplastic polyamide PA 6, PBT housing material.

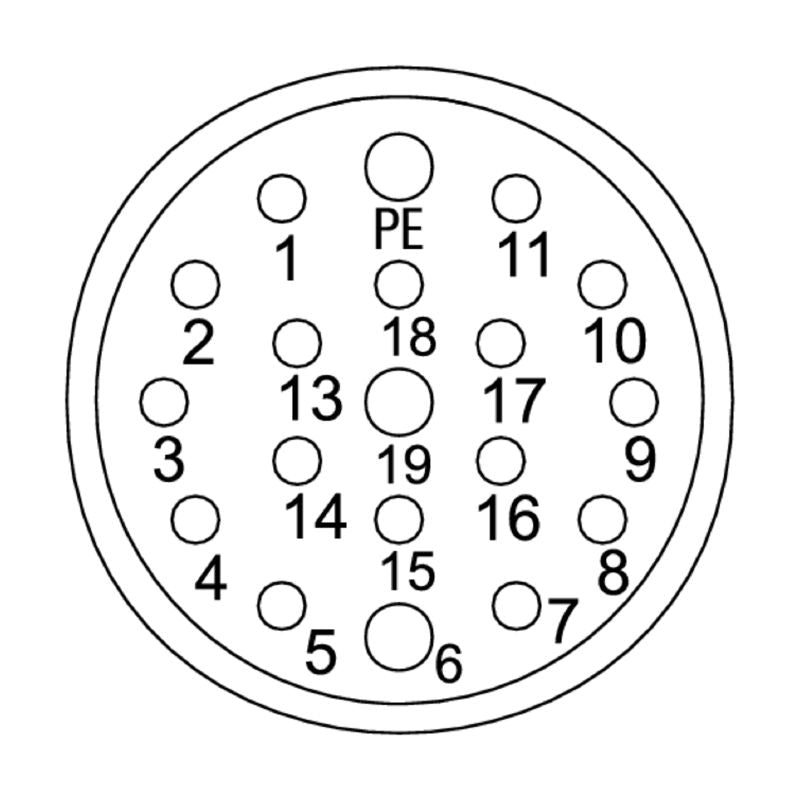

•19-pole female gender configuration.

•Solder cups connection type.

•High durability with over 1000 plugging cycles.

Specifications:
