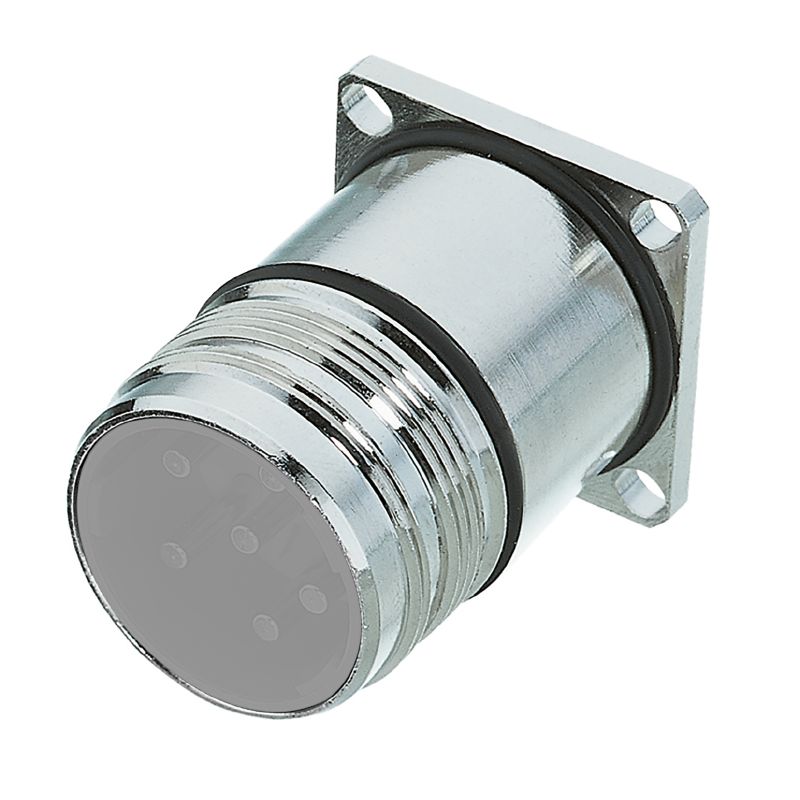

1170340000 - Flexible Sensor/Actuator Connector with Built-in Plugs

1170340000 - Flexible Sensor/Actuator Connector with Built-in Plugs

SKU: SKU: 1170340000 Download PDF

Variant:
  • 1170340000 - Flexible Sensor/Actuator Connector with Built-in Plugs
Regular price Now $17.74
Regular price BEFORE   $0.00 Sale price Now $17.74
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIE-M23-L-HW, a versatile plug-in connector designed to connect sensors and actuators with ease This component is equipped with integrated plugs and a spacious empty enclosure, making it adaptable for various uses It adheres to RoHS standards and comes with a UL certification (number E344862) Weighing only 26 grams, this connector is ideal for a wide range of environmental settings, ensuring reliable performance.

Features and Benefits:

    •Compliant with RoHS.

    •IP67 and IP69K protection degrees.

    •Temperature range of housing: -40 to +125 °C.

    •Shield connection available.

Specifications:

 Housing main material Copper-zinc alloy
 Pollution severity 3
 Temperature range of housing -40…+125 °C
 RoHS Compliance Status Compliant
 REACH SVHC Lead 7439-92-1
 SCIP 1c533b66-fcff-4da5-b89f-fd55fbf5cb55
 ETIM 6.0 EC000437
 ETIM 7.0 EC003556
 ETIM 8.0 EC003556
 ETIM 9.0 EC003556
 ETIM 10.0 EC003556
 ECLASS 9.1 27-44-02-02
 ECLASS 10.0 27-44-02-24
 ECLASS 11.0 27-44-02-24
 ECLASS 12.0 27-44-02-24
 ECLASS 13.0 27-44-02-24
 ECLASS 14.0 27-44-02-24
 ECLASS 15.0 27-44-02-24
