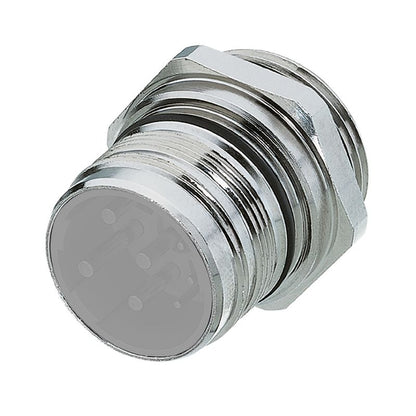

1170320000 - RoHS Compliant Sensor/Actuator Plug-in Connector

1170320000 - RoHS Compliant Sensor/Actuator Plug-in Connector

SKU: SKU: 1170320000 Download PDF

Variant:
  • 1170320000 - RoHS Compliant Sensor/Actuator Plug-in Connector
Regular price Now $22.93
Regular price BEFORE   $0.00 Sale price Now $22.93
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the functionality of the SAIE-M23-L-EM sensor/actuator plug-in connector, featuring integrated plugs and an unfilled enclosure This connector is compliant with RoHS standards and carries a UL certification number E344862, ensuring safety and reliability for your applications.

Features and Benefits:

    •Built-in plugs.

    •Empty enclosure.

    •RoHS compliant.

    •IP67 and IP69K protection degrees.

    •Temperature range of housing: -40 to +125 °C.

    •Shield connection.

Specifications:

 Housing main material Copper-zinc alloy
 Pollution severity 3
 Temperature range of housing -40…+125 °C
 ETIM 6.0 EC000437
 ETIM 7.0 EC003556
 ETIM 8.0 EC003556
 ETIM 9.0 EC003556
 ETIM 10.0 EC003556
 ECLASS 9.1 27-44-02-02
 ECLASS 10.0 27-44-02-24
 ECLASS 11.0 27-44-02-24
 ECLASS 12.0 27-44-02-24
 ECLASS 13.0 27-44-02-24
 ECLASS 14.0 27-44-02-24
 ECLASS 15.0 27-44-02-24
