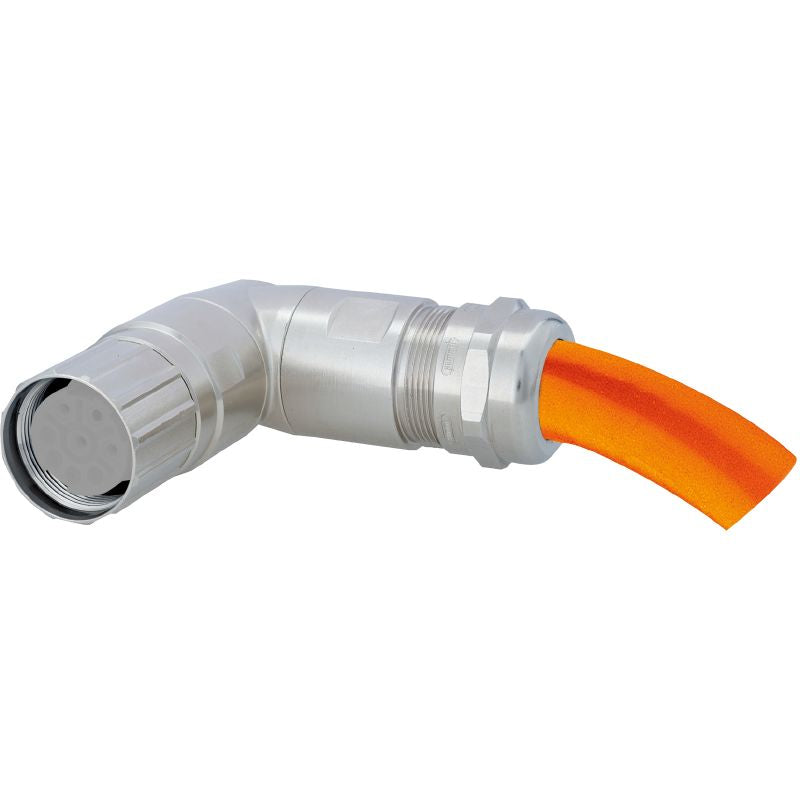

1170280000 - Versatile ROHS Compliant Sensor/Actuator Connector Enclosure

1170280000 - Versatile ROHS Compliant Sensor/Actuator Connector Enclosure

SKU: SKU: 1170280000 Download PDF

Variant:
  • 1170280000 - Versatile ROHS Compliant Sensor/Actuator Connector Enclosure
Regular price Now $39.11
Regular price BEFORE   $0.00 Sale price Now $39.11
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-M23-GSW-L-7/12, a versatile plug-in connector designed specifically for sensors and actuators This empty enclosure allows for customization to meet your unique requirements With its ROHS compliance and UL certification (E344862), you can trust in its quality and safety The GTIN for this product is 4032248962327 Its strong construction makes it suitable for a wide range of applications, providing you with the flexibility you need for your projects.

Features and Benefits:

    •Net weight is 142 g.

    •Maximum cable diameter is 12 mm.

    •Minimum cable diameter is 7 mm.

    •Housing is made from a copper-zinc alloy.

    •Offers more than 1000 plugging cycles.

    •Designed for pollution severity level 3.

    •Protection degree rated at IP67 and IP69K.

    •Includes shield connection.

    •Temperature range of housing is -40 to +125 °C.

Specifications:

 RoHS Compliance Status Compliant with exemption
 RoHS Exemption 6c
 REACH SVHC Lead 7439-92-1, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1
 SCIP f34fc414-7303-481d-8a96-44b52af18999
 ETIM 6.0 EC000437
 ETIM 7.0 EC003556
 ETIM 8.0 EC003556
 ETIM 9.0 EC003556
 ETIM 10.0 EC003556
 ECLASS 9.1 27-44-02-02
 ECLASS 10.0 27-44-02-24
 ECLASS 11.0 27-44-02-24
 ECLASS 12.0 27-44-02-24
 ECLASS 13.0 27-44-02-24
 ECLASS 14.0 27-44-02-24
 ECLASS 15.0 27-44-02-24
