1170270000 - Customizable RoHS-Compliant Sensor/Actuator Connector Enclosure

1170270000 - Customizable RoHS-Compliant Sensor/Actuator Connector Enclosure

SKU: SKU: 1170270000   Download PDF

Select a Variant:
  • 1170270000 - Customizable RoHS-Compliant Sensor/Actuator Connector Enclosure
Qty:
Regular price Now $16.37   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $16.37 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

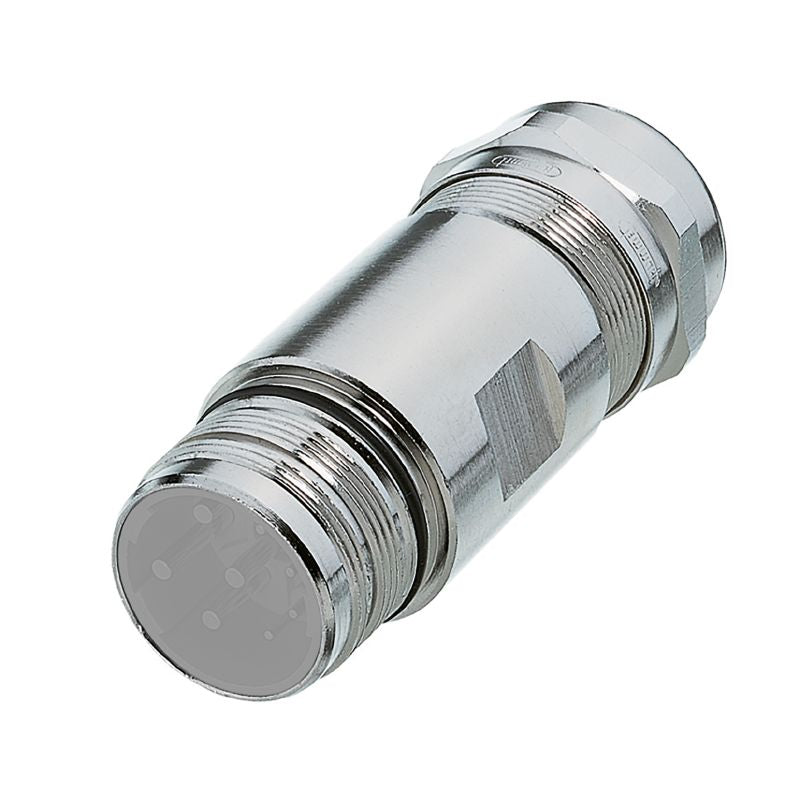

Introducing a versatile sensor/actuator plug-in connector with an innovative empty enclosure design This connector not only meets RoHS compliance standards but also boasts a UL certification (No E344862) Its adaptable nature makes it suitable for a wide range of applications, allowing for customization to fit your specific needs.

Features and Benefits:

    •RoHS compliant with exemptions.

    •Has a net weight of 82 g.

    •Max cable diameter of 17 mm and min cable diameter of 7 mm.

    •Manufactured from a copper-zinc alloy.

    •Supports over 1000 plugging cycles.

    •Pollution severity rated at 3.

    •Enclosed with an IP67 protection degree.

    •IP69K rated for high-pressure and high-temperature cleaning processes.

    •Includes shield connection.

Specifications:

 Temperature range of housing -40…+125 °C
 ETIM 6.0 EC000437
 ETIM 7.0 EC003556
 ETIM 8.0 EC003556
 ETIM 9.0 EC003556
 ETIM 10.0 EC003556
 ECLASS 9.1 27-44-02-02
 ECLASS 10.0 27-44-02-24
 ECLASS 11.0 27-44-02-24
 ECLASS 12.0 27-44-02-24
 ECLASS 13.0 27-44-02-24
 ECLASS 14.0 27-44-02-24
 ECLASS 15.0 27-44-02-24
