1170110000 - 17-Pole Plug-In Connector for Sensors & Actuators

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-M23-BE-17 plug-in connector, expertly crafted for use in sensor and actuator tasks This connector boasts 17 poles and is made from durable thermoplastic polyamide (PA 6) and PBT materials It is engineered to support a nominal current of 8A and a voltage of 160V, making it versatile for various applications Enhanced with H, N, S, X, Y, and Z coding compatibility, this connector features female contacts and is designed to endure over 1000 insertion cycles.

Furthermore, it adheres to RoHS standards without exceptions and contains no SVHC above 01 wt%, ensuring both safety and environmental compliance.

Features and Benefits:

•Compliant with RoHS.

•Contains no SVHC above 0.1 wt%.

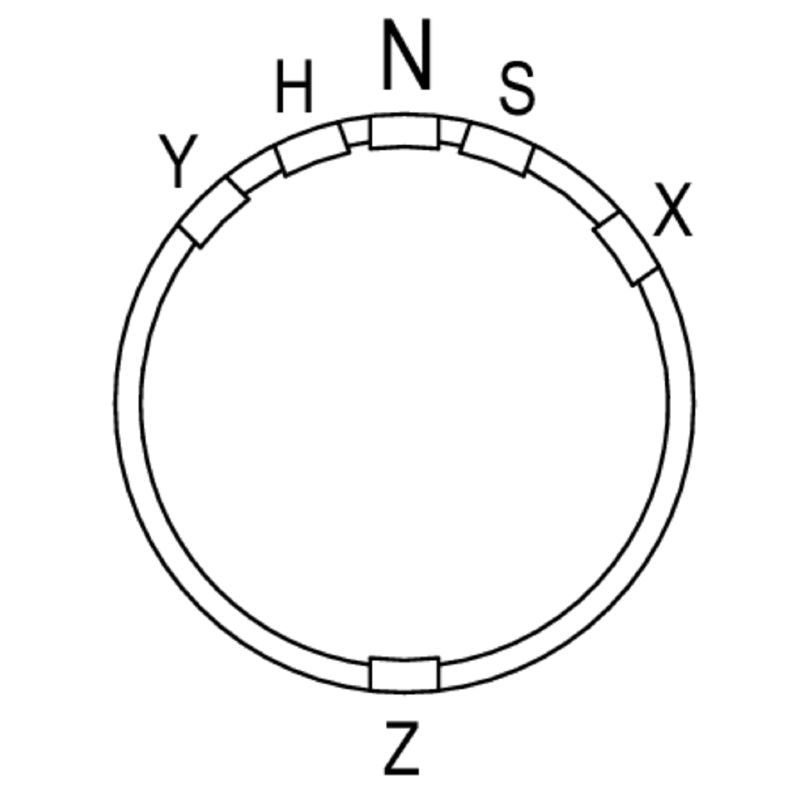

•Coding possibilities for M23 signal inserts.

•Female gender of contact.

•Can withstand over 1000 plugging cycles.

•Rated for a current of 8A at 1mm contact.

Specifications:
