1170080000 - 16-Pole RoHS Connector for 160V, 8A Crimping

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-M23-SE-16, an advanced sensor/actuator plugin connector that meets RoHS compliance for safety and environmental standards This connector features a male contact design and supports crimp connections for reliable performance With 16 poles and a rated current capacity of 8A for 1 mm contacts, it operates effectively at a nominal voltage of 160V Built to last, it can withstand over 1000 plugging cycles, ensuring long-term usability.

Weighing only 3 grams, the connector is made from durable thermoplastic polyamide PA 6 and PBT materials, making it suitable for various applications as classified under multiple ETIM and ECLASS categories.

Features and Benefits:

•RoHS compliant without exemption.

•No SVHC above 0.1 wt%.

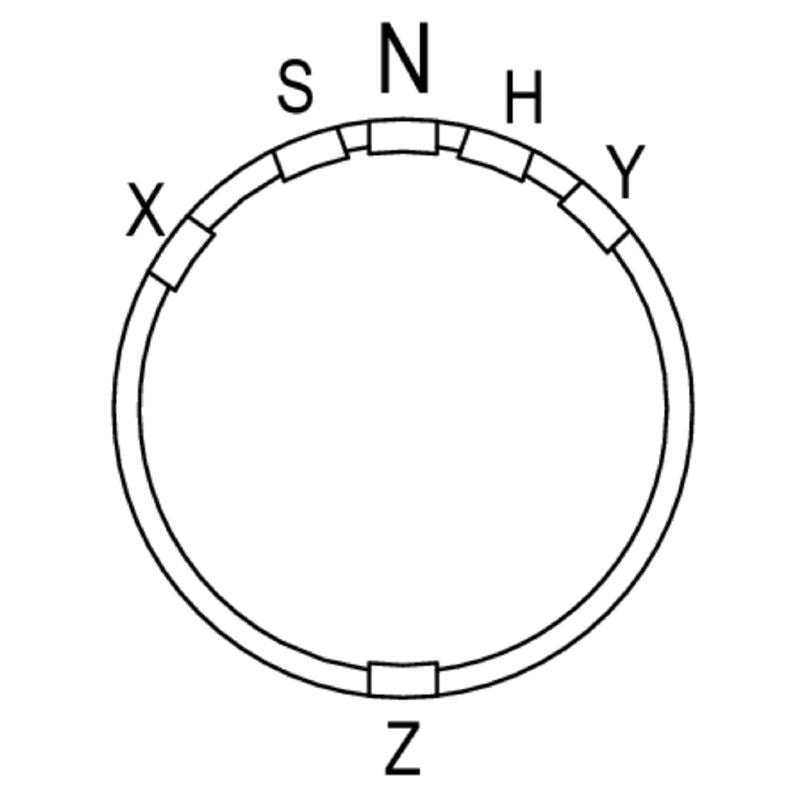

•Allows for multiple coding possibilities including H-coded, N-coded, and others.

•Rated for pollution severity class 3.

Specifications:
