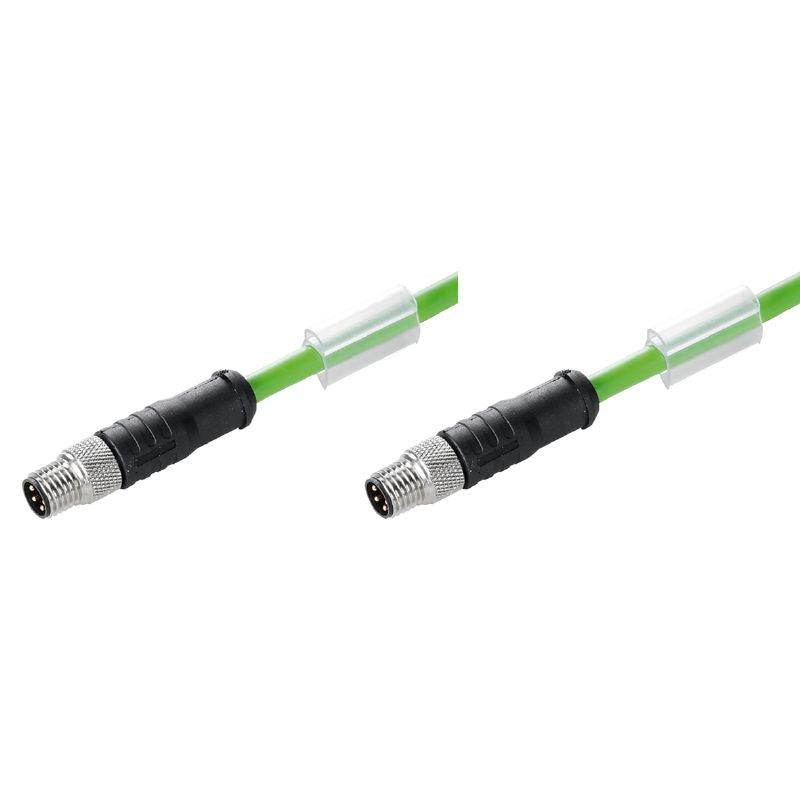

1160930350 - 3.5m Shielded M8 Connecting Line with 4 Poles

1160930350 - 3.5m Shielded M8 Connecting Line with 4 Poles

SKU: SKU: 1160930350   Download PDF

Select a Variant:
  • 1160930350 - 3.5m Shielded M8 Connecting Line with 4 Poles
Qty:
Regular price Now $40.23   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $40.23 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing an M8 to M8 connector line, designed with four poles and extending 35 meters in length This cable features a straight male connector at both ends, providing reliable connections for your needs Its PUR sheath is halogen-free, ensuring a safer choice for your applications Compliant with RoHS standards and specific exemptions, this durable connecting line is built to meet industry requirements while ensuring optimal performance.

Features and Benefits:

    •Shielded to reduce electromagnetic interference.

    •Compliant with RoHS standards.

    •Straight male connectors on both ends.

    •Industrial automation.

    •Sensor connections.

Specifications:

 Acceleration 5 m/s²
 Bending cycles 5 Mio
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Cable length 3.5 m
 Core cross-section 0.15 mm²
 Outer diameter 4.8 mm ± 0.3 mm
 Nominal current 4 A
 Nominal voltage 30 V
 Protection degree IP67
 Temperature range, stationary -40...80 °C
 Plug, left M8, IP67, male contact, straight, Plastic, shielded
 Plug, right M8, IP67, male contact, straight, Plastic, shielded
 Sheath material PUR
