1150620100 - 1m M12 Connecting Line, 3 Poles, 90° Angle

1150620100 - 1m M12 Connecting Line, 3 Poles, 90° Angle

SKU: SKU: 1150620100   Download PDF

Select a Variant:
  • 1150620100 - 1m M12 Connecting Line, 3 Poles, 90° Angle
Qty:
Regular price Now $11.87   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $11.87 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

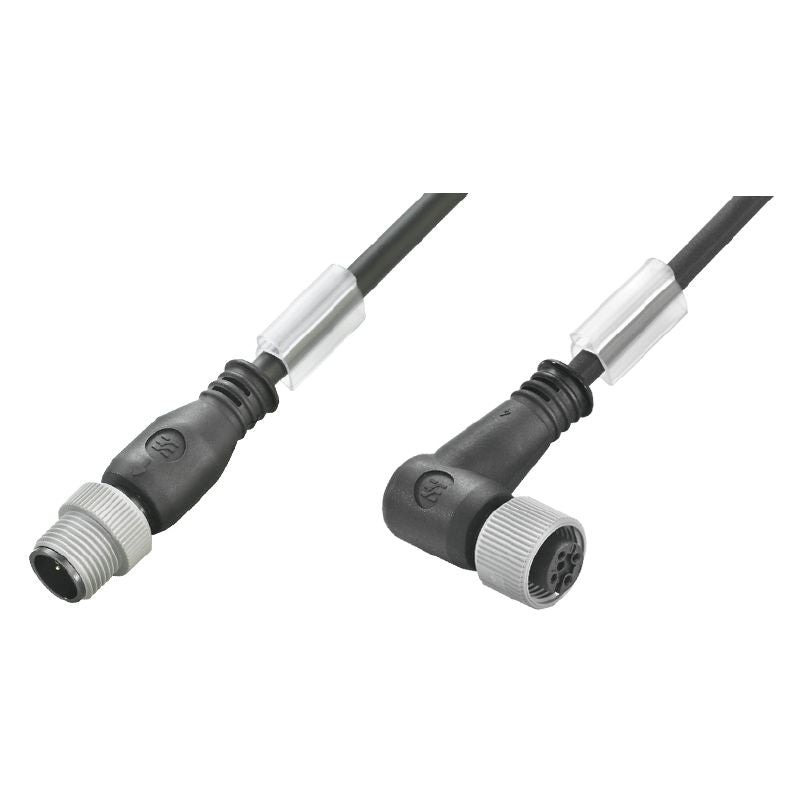

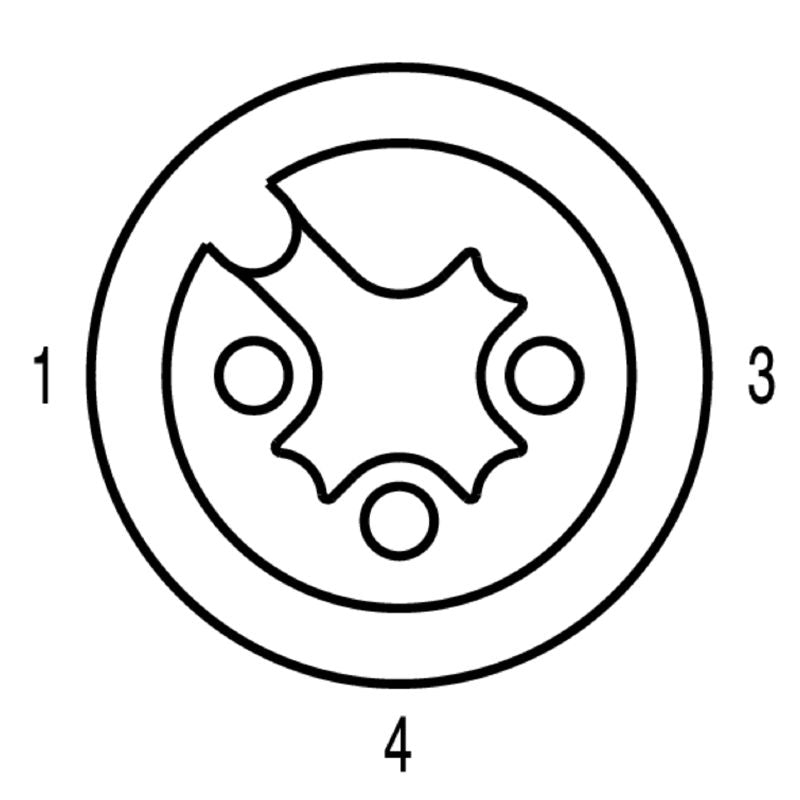

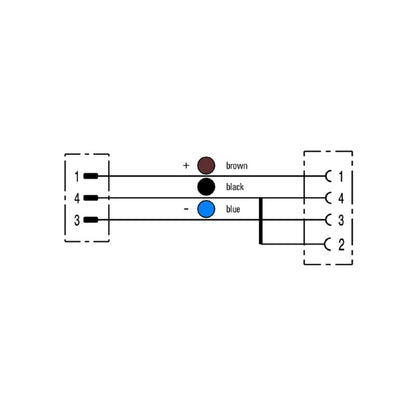

Discover the convenience of this sensor and actuator connection cable featuring M12 connectors on both ends Spanning 1 meter in length, this cable is equipped with a 3-pole pin configuration One end boasts a straight connector, while the other is designed with a 90-degree angle for flexible installations Constructed from halogen-free PUR, this cable does not include shielding or an integrated LED, making it a straightforward choice for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS.

    •No halogen content.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

Specifications:

 Acceleration 5 m/s²
 Bending cycles 12 Mio
 Bending radius (moving) 10 x cable diameter
 Bending radius (stationary) 5 x cable diameter
 Cable length 1 m
 Core cross-section 0.34 mm²
 Insulation PP
 Outside diameter 4.3 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 250 V
 Protection degree IP65, IP66, IP67, IP68
 Temperature range (moving) -25...80 °C
 Temperature range (stationary) -40...80 °C
 Threaded ring material Plastic
